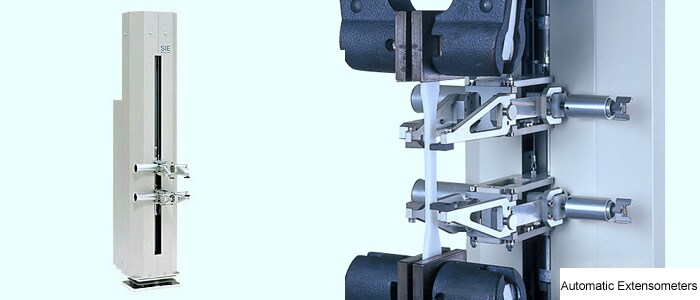

SIE-560A/560SA Automatic Extensometers

Automatic Extensometer SIE-560 [Standard Type] / 560S [High-Precision Type]

To determine the suitability of a material for an application where it is under load, measuring its elongation is important. Measuring elongation enables determination of the elastic modulus (reversible elongation in the elastic region) by measuring the small initial elongation range, and determination of elongation at specimen failure, by measuring larger irreversible elongation in the plastic region. Shimadzu’s SIE-560A series automatic extensometers accomplish both of these measurements with high accuracy, and provide automated functions that increase testing efficiency and test reproducibility. Ideal for testing a wide variety of materials, including metallic materials, plastics, and composites, the SIE-560A series complies with ISO 527, JIS K 7161, and ASTM D638 standards for plastics tensile testing. In addition, the SIE-560A series supports strain-rate controlled metallic material tensile testing measurements specified in ISO 6892, JIS Z 2241, and ASTM E4

Features Compliant with Plastic and Metallic Material Testing Standards

Features Compliant with Plastic and Metallic Material Testing Standards

Automated actions and user-friendly operability increase testing throughput

Function Buttons

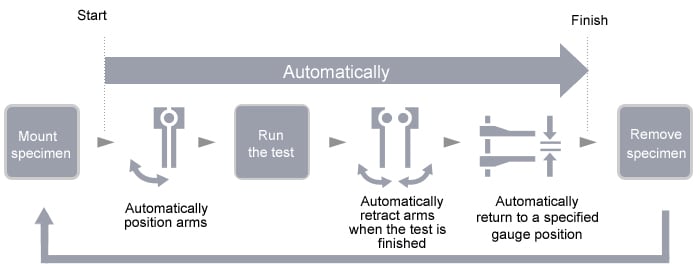

Functions of the SIE-560A series, including the automatic detection of the mid-point between upper and lower grips, the automatic return to a specified gauge position, and the automatic release of specimens after testing is finished, ensure that routine testing can be performed conveniently and reproducibly.

Integration of the SIE-560A series into Trapezium X materials testing software eliminates the trouble of having to go back and forth between the software and the test system.
In addition, the smart controller on AG-X plus test frames provides the flexibility to operate the extensometer next to the test system.

Automatic Functions

High Measurement Precision

SIE-560A series high-precision measurements

The SIE-560A series high-precision measurements are the result of a high-precision magnetic induction linear sensor, an ultra-high precision strain gauge sensor (on SIE-560SA models only), and a newly developed digital strain engine.

■ SIE-560SA High-Precision Automated Extensometer
Measures the modulus of elasticity in accordance with ISO 527, JIS K 7161, JIS K 7162, and ASTM D638 plastics tensile testing standards and ISO 6892, JIS Z 2241, and ASTM E8 metallic materials
ISO 9513 Class 0.5, JIS B7741 Class 0.5
ASTM E83 Class B

■ SIE-560A Automated Extensometer
Measures the modulus of elasticity in accordance with the ASTM D638 plastics tensile testing standard and ISO 6892, JIS Z 2241, and ASTM E8 metallic materials tensile testing standards.
ISO 9513 Class 1, JIS B7741 Class 1
ASTM E83 Class C

Model SIE-560 SIE-560S
Measurement range Max. 560 mm Small range: Max. 4 mm
Large range: Max. 560 mm
Measurement principle High-precision magnetic induction linear sensor Small range: Ultra-high precision strain gauge type sensor
Large range: High-precision magnetic induction linear sensor
Measurement precision 0.5 % or less or ±2.5 µm of indicated value, whichever is larger 0.5 % or less or ±1 µm of indicated value, whichever is larger
Gauge length 10 mm to 550 mm 50 mm (can be optionally changed to 10 to 40 mm)
Compliant Standards Plastics Tensile Testing Standard  ASTM D638

Metallic Materials Tensile Testing Standards
ISO 6892, JIS Z 2241, ASTM E8
Plastics Tensile Testing Standard
ISO 527, JIS K 7171, ASTM D638
Metallic Materials Tensile Testing Standards
ISO 6892, JIS Z 2241, ASTM E8
Applicable Specimens Steel, non-ferrous metals, composite materials (CFRP, GFRP, etc.), and general-purpose plastics

High-Precision Extensometers

TRViewX Non-Contact Digital Video Extensometers
Class 0.5

TRViewX Non-Contact Digital Video Extensometers Class 0.5

TRViewX high-precision, non-contact extensometers measure elongation by processing images of pecimens captured using a CCD camera. These extensometers enable high-precision, wide-range elongation measurements of an extensive selection of materials, including metallic materials, rubber, plastics, and lumber.

SSG-H One-Touch, Strain Gauge Extensometers
Class 0.5

SSG-H One-Touch, Strain Gauge Extensometers Class 0.5

SSG-H extensometers are used to measure the elongation of metallic materials and hard plastics.
These strain gauge extensometers are attached and removed from specimens by a one-touch operation.
By calibrating the extensometer, it conforms to JIS Class 0.5, ISO Class 0.5, and ASTM Class B standards for higher precision measurement.
