ICPMS-2030 - Options

Inductively Coupled Plasma Mass Spectrometer

LabSolutions CS/DB for ICPMS-2030 Series Supports Laboratory

Networking and FDA 21 CFR Part 11 Compliance.

LabSolutions CS/DB ICPMS provides compliance for regulations concerning electronic record keeping and electronic signatures required by FDA 21 CFR Part 11 and other regulations stipulated by Japan's Ministry of Health, Labor and Welfare (ERES regulations). Additionally, since the software supports laboratory networking, analytical results from a broad variety of analytical instruments used in the laboratory, including LC, LCMS, GC, GCMS, UV, FTIR, RF, EDX, TOC, and PPSQ, can be managed centrally from a server.

Two Data Management Methods

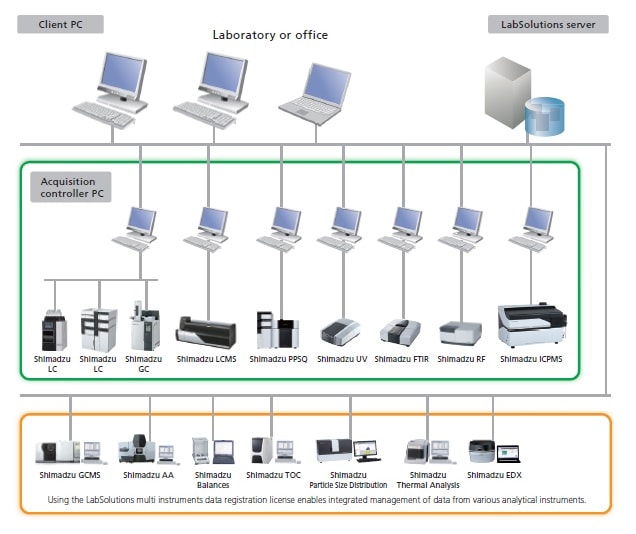

Network System: LabSolutions CS

LabSolutions CS can freely access all instruments on the analytical network, so that all analytical data is managed on the network server and the data can be loaded to any computer connected to the network. This is especially recommended for customers that have many users and want to manage data on a server together with LC, GC, FTIR, UV, RF, EDX, TOC, PPSQ, and other data for ER/ES compliance.

Standalone Database System: LabSolutions DB

This configuration does not require a network connection and is ideal for customers that want to manage all data on one computer for ER/ES compliance only for a standalone system.

System Contents

Network system LabSolutions CS LabSolutions ICPMS, LabSolutions CS Connection Kit, LabSolutions CS
Standalone database system LabSolutions DB LabSolutions ICPMS, LabSolutions DB Connection Kit

Peripheral Equipment

AS-10 Autosampler
(For automatic analysis of 60 samples)

AS-10 Autosampler

Multiple samples can be analyzed successively. The turntable results in a short path length for sample injection, which can reduce the rinse time.

Vials: 60 15- mL vials
         8 50-mL vials
Size: W290 x D508 x H300 mm (excluding arm)
Power supply: Single-phase 100 V, 50/60 Hz, 50 VA

Note: Requires a power cord.
Note: An additional rinsing port is optional (There is no automatic solvent supply).
         Rinsing Port Expansion Kit for AS-10.

ASX-280 Autosampler
(For automatic analysis of 120 samples)

ASX-280 Autosampler

Vials: 10 50-mL vials (standard samples) or 120 14-mL vials
         80 20-mL vials (rack sold separately)
         42 50-mL vials (rack sold separately)
Size: W355 x D550 x H620 mm (include sample probe)
        W90 x D180 x H60 mm (rough dimensions of power supply unit)
Power supply: 100-240 V AC, 47-63 Hz, 1.9A
Weight: 8.1 kg (main unit)

Note: Requires an ASX Connection Kit ICPMS-2030.

ASX-560 Autosampler
(For automatic analysis of 240 samples)

Autosampler ASX-560

Vials: 10 50-mL vials (standard samples) or 240 14-mL vials
         160 20-mL vials (rack sold separately)
         84 50-mL vials (rack sold separately)
Size: W580 x D550 x H620 mm (include sample probe)
        W90 x D180 x H60 mm (rough dimensions of power supply unit)
Power supply: 100-240 V AC, 47-63 Hz, 1.9 A
Weight: 11.7 kg (main unit)

Note: Requires n ASX Connection Kit ICPMS-2030.

Cooling Water Circulator Set

Cooling Water Circulator Set

Size: W377 x D500 x H615 mm
Power supply: Single-phase 200 V, 50/60 Hz, 2 kVA
Weight: 43 kg

Note: Used to cool the main unit.
Note: Requires a separate chiller Connection Kit.

Automatic Internal Standard Addition Kit

This kit is used for in-line mixing of measurement sample and internal standard solutions and introducing the mixtures into the ICP system.

HFS-5 Hydrofluoric Acid Sample Injection System

This system includes a torch, chamber, extension tube, nebulizer, drain, and their corresponding accessory parts. If purchasing a new system, order this kit and an S2 orifice assembly. Used to directly inject samples that contain hydrofluoric acid. The nebulizer, chamber, and drain system are made using fluoropolymer materials and the injector unit on the torch is made using alumina.

Organic Solvent Injection System

To introduce organic solvents, a mixture of argon and oxygen gases (70% Ar and 30% O2) is injected into the interface unit to prevent precipitation of carbon (C) by the organic solvent. This system includes a Quadruple Torch for Organic Solvents, ICPMS, drain, and their corresponding accessory parts.
