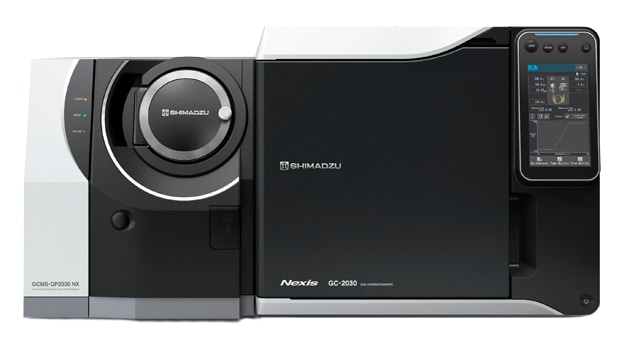

GCMS-QP2020 NX Single Quadrupole GC-MS

Gas Chromatograph Mass Spectrometer

Add Bookmark


GCMS-QP2020 NX Single Quadrupole GC-MS
Request More Information

Exceptional Sensitivity and Robustness with Easy Maintenance and Operation

Versatile configurations for enhanced sensitivity and multiple modes of ionization

The GCMS-QP2020 NX offers the best performance in its class with Boosted Efficiency Ion Source (BEIS) compatibility taking detection limits lower than ever.

Its advanced ion source and ion optics boost ionization and transport efficiency of ions from the source through the mass analyzer to the detector. With Smart-CI source, you can easily switch between electron ionization (EI) and chemical ionization (CI) methods.

Robust vacuum system improves performance with alternative carrier gasses like Hydrogen and Nitrogen, lowering operating costs without sacrificing sensitivity.

Key Features

Key features of the GCMS-QP2020 NX Single Quadrupole GC-MS

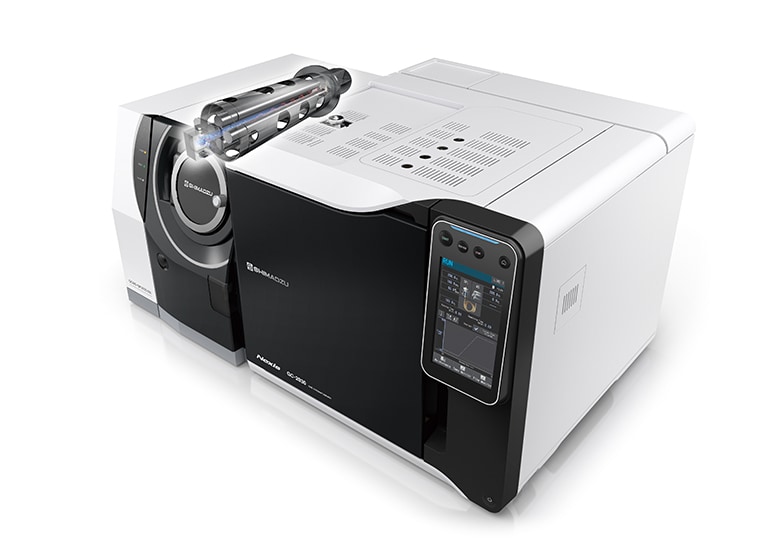

  • High-performance ion source and ion optics enhance ionization and transport efficiency

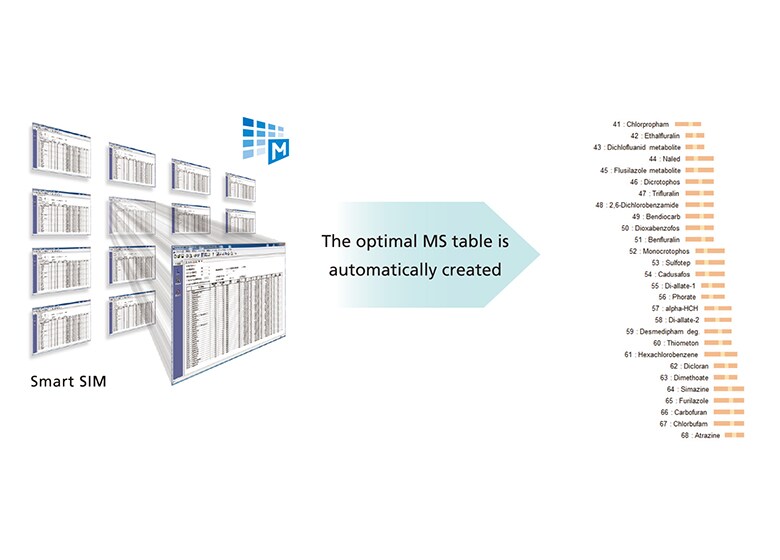

  • Smart SIM™ automatic method creation function
  • Large-capacity turbomolecular pump with enhanced exhaust efficiency improves use with helium as well as hydrogen and nitrogen
  • Improved temperature control function enables more precise oven temperature and three new cooling rate levels that can be specified
  • Easily switch between EI and PCI methods using new Smart-CI source
  • High-speed scan and data acquisition using Advance Scanning Speed Protocol (AASPTM) to achieve speeds up to 20,000 µ/second across all masses
  • Ecology mode reduces costs associated with power and carrier gas consumption

Quick Specs

Dimensions 86 cm x 54 cm x 44 cm
  EI Source BEIS Source
S/N 1 pg, 1µL OFN injected: S/N ≥ 2,000 (He Carrier) 1 pg, 1µL OFN injected: S/N ≥ 20,000 (He Carrier)
  1 pg, 1µL OFN injected: S/N ≥ 300 (H₂ Carrier)
IDL Sensitivity 100 fg, 1µL OFN injected: IDL ≤ 10 fg (He Carrier) 5 fg, 1µL OFN injected: IDL ≤ 1 fg (He Carrier)
  100 fg, 1µL OFN injected: IDL ≤ 20 fg (He Carrier)
Scan Speed 20,000 u/sec
Ion Source EI, BEIS, PCI, NCI, Smart Source
Mass Range m/z 1.5 to 1,090



Maximum level of sensitivity in its class

  • High sensitivity and stability with advanced scanning

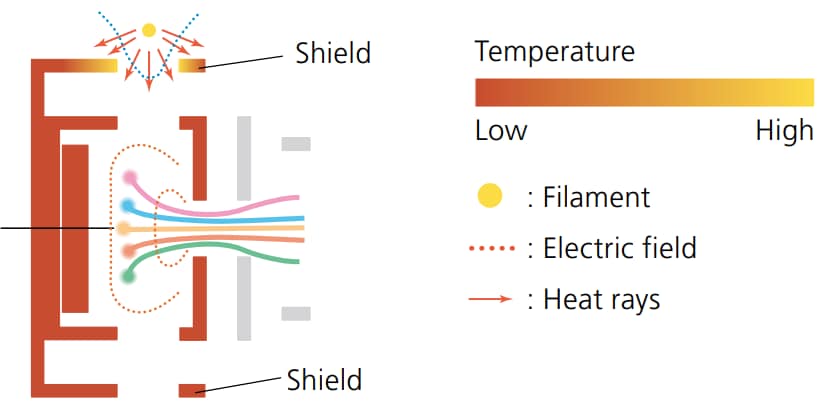

    The ion source of the GCMS-QP2020 NX offers high sensitivity and long-term stability because the filament and the ion source box are separated, preventing active spots inside the ion source. This configuration reduces the filament’s impact on the interior of the ion source. A shield blocks the radiant heat from the filament, ensuring a uniform temperature inside the ion source box.

    Additionally, the Advanced Scanning Speed Protocol (ASSP™) minimizes sensitivity deterioration during high-speed scans of 10,000 u/sec or faster.

  • High sensitivity and stability with advanced scanning
Return to Top ^

Versatile analytical capabilities and configurations

  • Smart EI /CI ion source switches between modes

  • Smart EI /CI ion source switches between modes

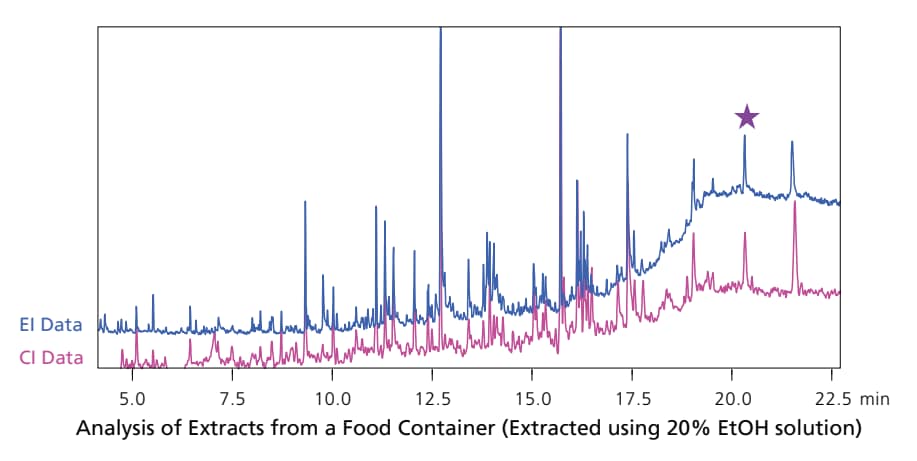

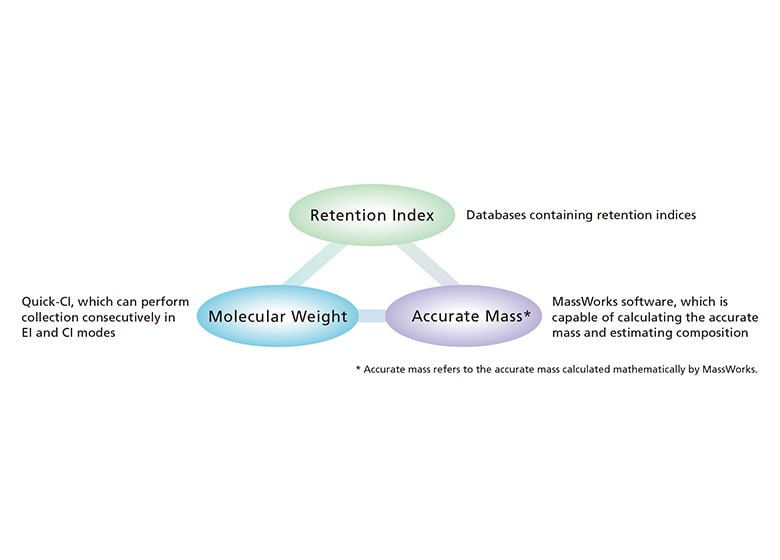

    The Smart EI/CI ion source lets you acquire CI data without switching the ion source, keeping the EI sensitivity intact. If identifying compounds with the EI mode using the mass spectral library is difficult, you can obtain molecular weight information from CI data to help estimate unknown compounds. Plus, Quick-CI can collect data consecutively in both EI and CI modes.

    The GCMS-QP2020 NX offers a wide variety of system configurations and sample-introduction devices for an expanded range of applications.

Return to Top ^

Easy maintenance and extended service life reduce downtime

  • The GCMS-QP2020 NX system is built to last

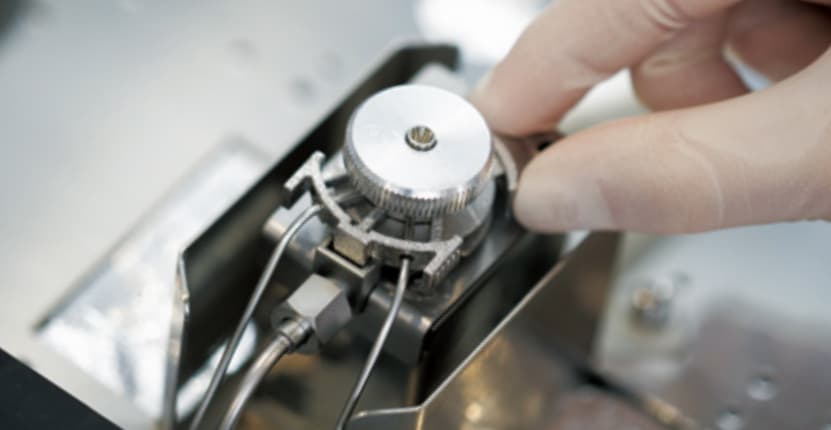

    The GCMS-QP2020 NX features a contaminant-resistant ion source that’s easy to clean and designed for long-term use. The instrument’s ultra-high sensitivity means you can use smaller injection volumes, which helps extend the life of inserts, columns and other consumables — saving you both time and money on maintenance.

    And, with the ClickTek™ mechanism, you can easily attach and remove consumables—no tools needed. Just slide the ClickTek lever to open or close the injection port.

  • Easy maintenance and extended service life reduce downtime
Return to Top ^

Featured Content

Return to Top ^

Citations

Videos

  • Converting Helium GCMS methods to Hydrogen

    • Gas Chromatograph-Mass Spectrometry

    In this video we will discuss the use of hydrogen carrier gas as an alternative carrier gas for GCMS. Topics will include what changes need to be made to the instrument, what software changes need to be made to run hydrogen carrier gas, and the conversion from helium methods to hydrogen methods.
