Detailed Hydrocarbon Analysis - Features

Add Bookmark

Simple Data Management and Workflow

PONAsolution does not require data file conversion. After analysis, the software can automatically read and analyze data. All settings and results information are stored in a single data file, simplifying data management.

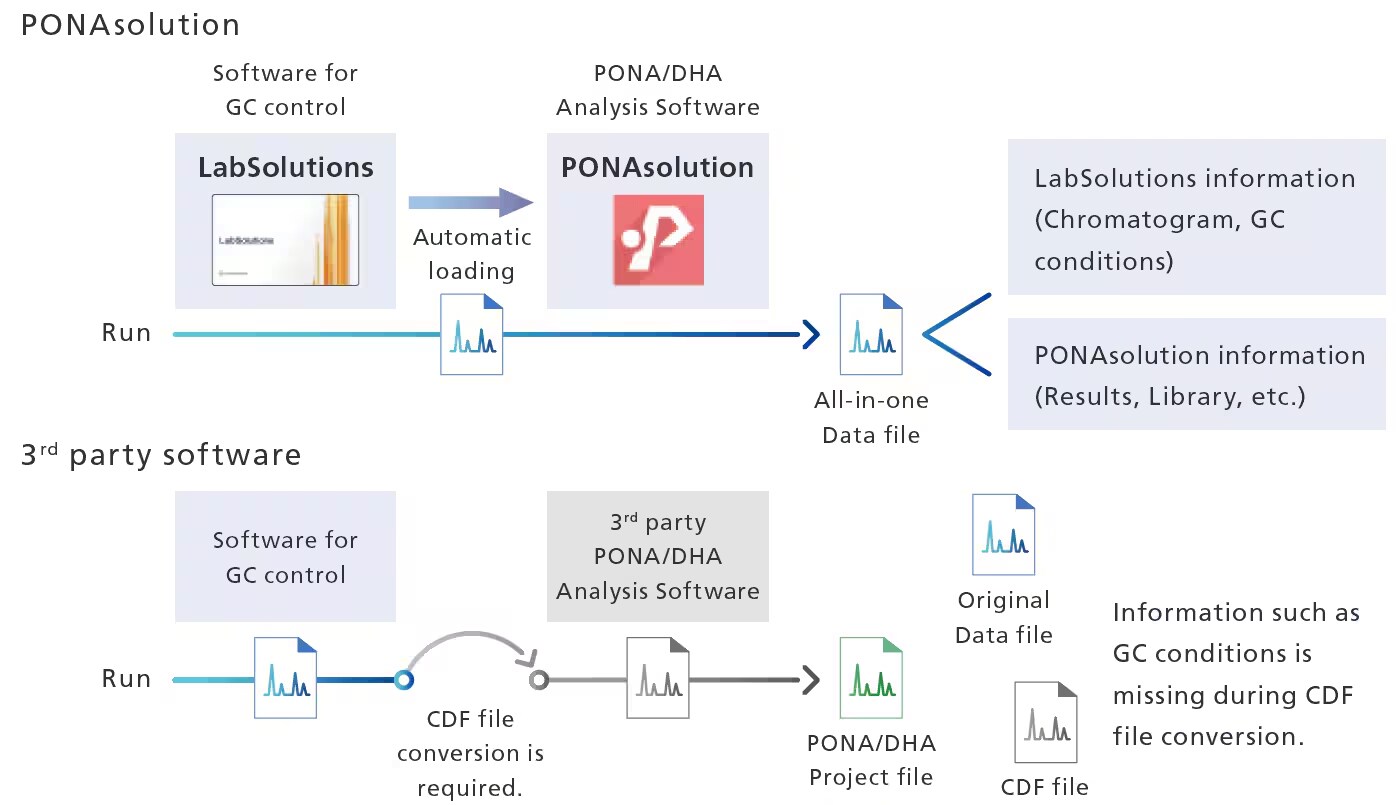

Workflow for PONA/DHA Analysis

  • Support for dual line analysis

  • Simultaneous connection of 4 GCs and automatic data analysis on a single PC

  • Simple Results View

  • PDF Report Output/Print Function

Workflow for PONA/DHA Analysissolution

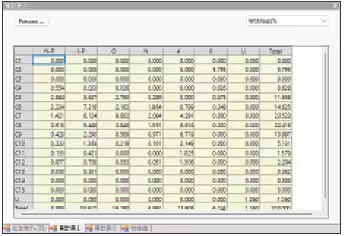

  • Results View

    Results View

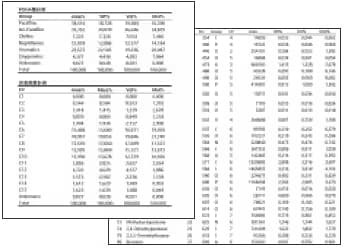

  • Report

    Report

Rich Identification Support Functions

  • AART for DHA |
    Automatic library correction using retention index

    The libraries used for each ASTM standards are fully registered with retention index. With the help of n-alkanes for multiple point correction, high-precision retention time correction can be achieved, allowing for accommodation in the following situations:

    • When the column is trimmed or changed

    • When the library is installed to a new instrument

    AART: Automatic Adjustment of Retention Time

  • Rich Identification Support Functions

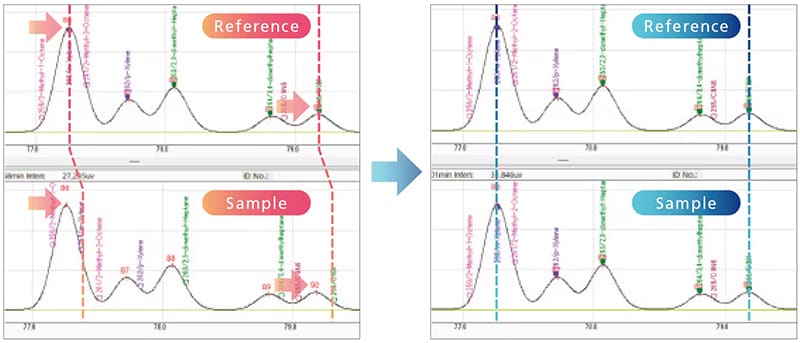

  • Two Point Identification | Partial Library Correction

    If you want to modify only a specific interval, PONAsolution can automatically modify the retention time of components by specifying a range.

    “Two point identification” and “PIONA filter” can be used in combination.
    For example, you can modify the retention time of the library with two-point identification, focusing only on the aromatic components (A).

  • Two Point Identification | Partial Library Correction

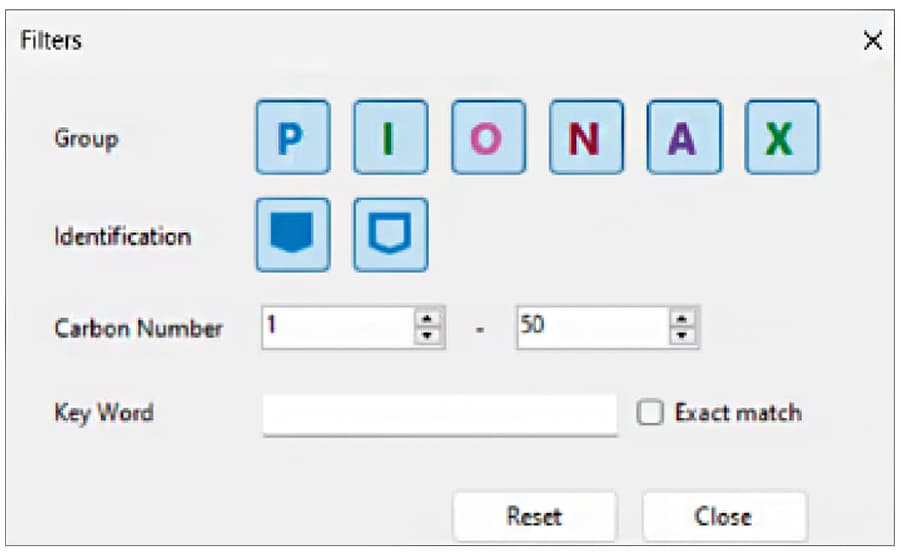

  • PIONA Filter

    If you only want to check the position of olefin (O), switch the marker display on the chromatogram for each PIONA type.

  • PIONA Filter

Reliable Quality and Total Support

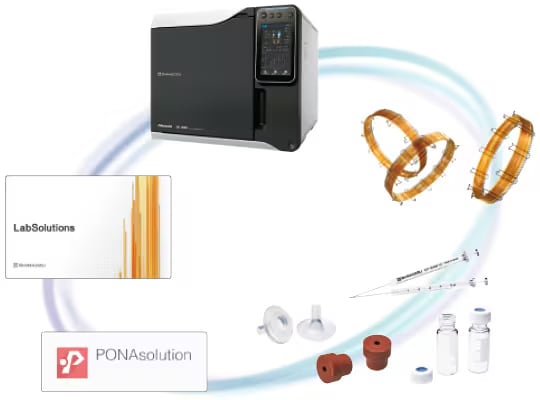

  • Comprehensive Support System

    Shimadzu offers high-quality analysis systems combining GC equipment, software and consumables. Leave installation, inspection and after-sales support to us.

  • Comprehensive support system
