High-Sensitivity Analysis System for Inorganic Gases

Gas containing inorganic gases and hydrocarbons is typically analyzed in any number of industries using a gas chromatograph (GC). The Shimadzu analysis system for inorganic gases can simultaneously analyze light hydrocarbons and low-concentration inorganic gases, including atmospheric components such as oxygen and nitrogen.

System		220-94724-01	220-94724-02	220-94724-03	220-94724-30	220-94724-31
Detector		TCD	TCD, MTN/FID	TCD, TCD, MTN/FID	TCD, MTN/FID. FID	TCD, TCD, FID
Target Compounds		O₂, N₂, CH₄, CO, CO₂, C₂	O₂, N₂, CH₄, CO, CO₂, C₂	H_2,O₂, N₂, CH₄, CO, CO₂	O₂, N₂, CH₄, CO, CO₂, C_2,C₁₂	H_2,O₂, N₂, CH₄, CO, CO₂, C₂, C₁₂
Analysis Time		16 min	16 min	16 mins	16 mins	16 mins
Comments	H2			X		X
	Jetanizer/FID high sensitivity analysis of CH4, CO, CO2, C2		X	X	X
	Extended Hydrocarbon analysis by GC-FID				X	X

Chromatograms

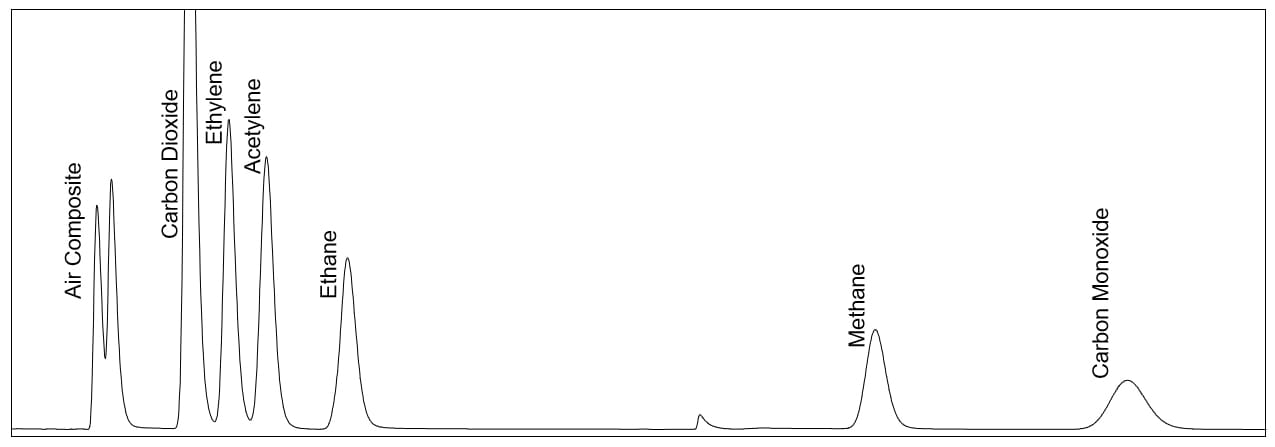

Jetanizer/FID Chromatogram for Permanent Gas and Light Hydrocarbons

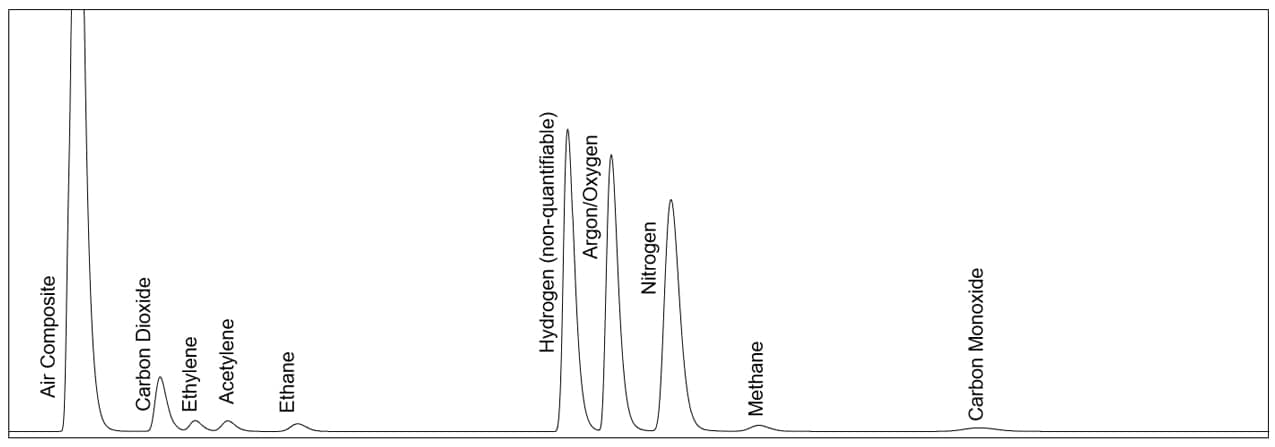

TCD Chromatogram for Permanent Gas and Light Hydrocarbons

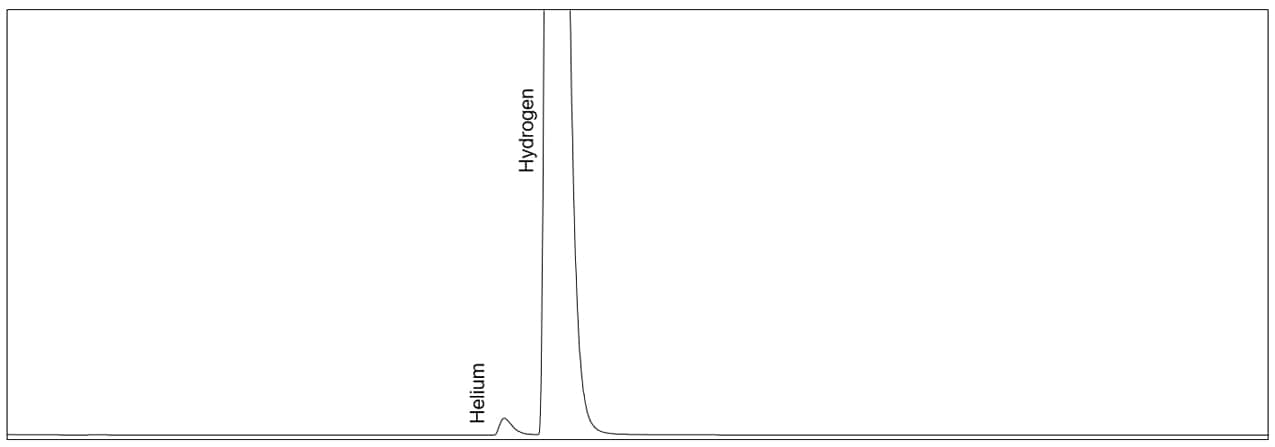

TCD Chromatogram for Helium in Hydrogen

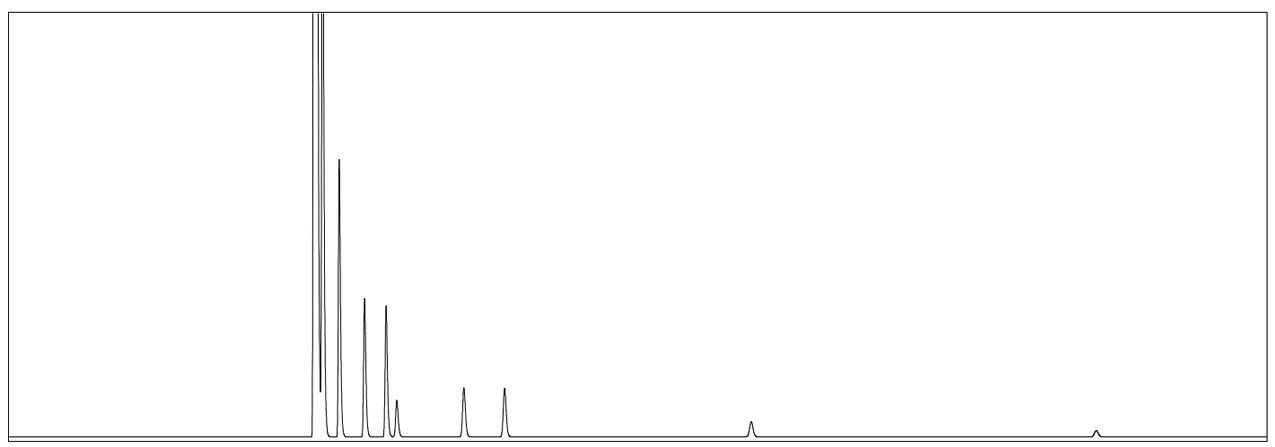

FID Chromatogram for Natural Gas
