Natural Gas Analysis

Add Bookmark

Shimadzu offers a variety of applicated gas chromatographs for the analysis of natural gas and liquefied natural gas to support midstream operations. The analysis of fixed gas can be incorporated into natural gas analyzers as well. An integrated software package is available for the calculation of the BTU content of the samples.



Natural Gas Analysis System Lineup

System Name Methods Sample Types Analytes Part Number
Extended Natural Gas Analyzer GPA 2261
GPA 2286		 Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), C14, CO2, N2 220-94889-30
Natural Gas Analyzer GPA 2261 Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), CO2, N2 220-90851-30
Natural Gas and Fixed Gas Analyzer GPA 2261 Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), CO2, N2, CH4, CO 220-90852-30
Natural Gas and He/H2 GPA 2261 Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), CO2, N2, He, H2 220-90852-32
Natural Gas Analyzer ASTM 1945 Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), CO2, N2 220-90852-31



TCD Chromatogram for Natural Gas

TCD Chromatogram for Natural Gas

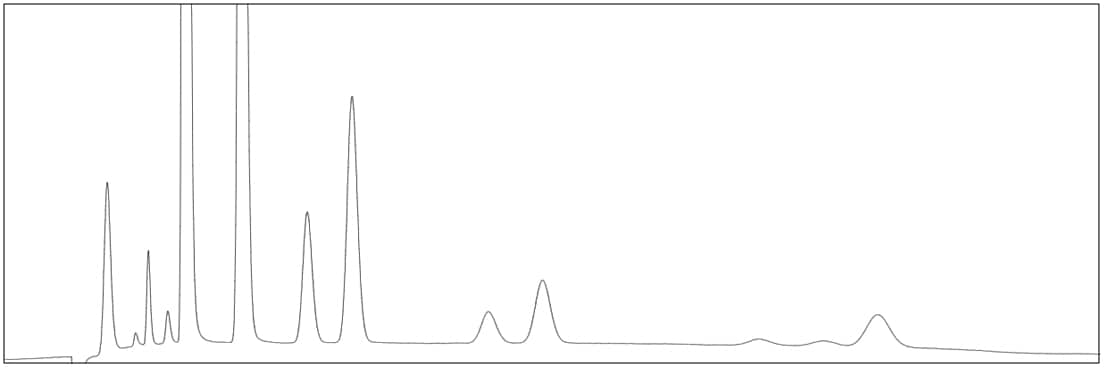

FID Chromatogram for Natural Gas

FID Chromatogram for Natural Gas

Liquefied Natural Gas (LNG) Analysis System Lineup

System Name Methods Sample Types Analytes Part Number
Extended Liquefied Natural Gas Analyzer GPA 2177
GPA 2186		 Liquefied Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), C14, CO2, N2 220-94825-30
Extended Liquefied Natural Gas and Methanol Analyzer GPA 2177
GPA 2186		 Liquefied Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n- pentane), C14, CO2, N2, Methanol 220-94826-30
Liquefied Natural Gas Analyzer GPA 2177 Liquefied Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), CO2, N2 220-90861-30

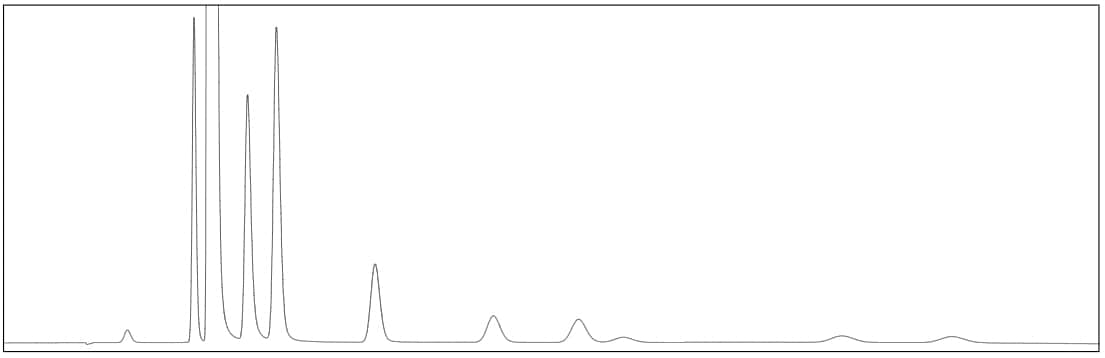

TCD Chromatogram for Liquefied Natural Gas

TCD Chromatogram for Liquefied Natural Gas

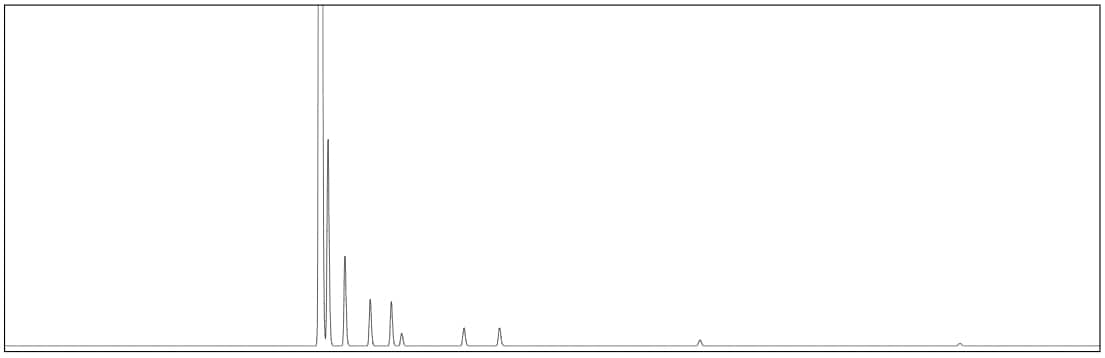

FID Chromatogram for Liquefied Natural Gas

FID Chromatogram for Liquefied Natural Gas

Combined Natural Gas and LNG Analysis System Lineup

System Name Methods Sample Types Analytes Part Number
Extended Liquefied and Natural Gas Analyze GPA 2261
GPA 2177
GPA 2186
GPA 2286		 Liquefied Natural Gas, Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), C14, CO2, N2 220-94922-30
Liquefied and Natural Gas Analyzer GPA 2261
GPA 2177		 Liquefied Natural Gas, Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), CO2, N2 220-94802-30
Liquefied and Natural Gas with Permanent Gas Analyzer GPA 2261
GPA 2177		 Liquefied Natural Gas, Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), CO2, O2, N2, CO 220-94952-30
Extended Liquefied and Natural Gas with Permanent Gas Analyzer GPA 2261
GPA 2177
GPA 2186
GPA 2286		 Liquefied Natural Gas, Natural Gas C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso-pentane, n-pentane), C14, CO2, O2, N2, CO 220-94887-30
Natural Gas and Hydrocarbon Streams Analyzer ASTM 1945
ASTM 2163		 Natural Gas (1945, 2163), Liquefied hydrocarbon streams (2163) Gas: C1-C5 (methane, ethane, propane, iso-butane, n-butane, iso- pentane, n-pentane), CO2, O2, N2, CO Gas and Liquid: C1-C5 hydrocarbons (paraffin and olefin), C6+ 220-94826-30
