Transformer Oil Gas Analysis

Analysis of the dissolved gases in transformer insulation and cooling oil is critical to ensuring the safety and longevity of the electronics in which they are used. Over time, thermal and electrical stresses cause the formation of various gases dissolved within the oil. Shimadzu offers a System GC compliant with ASTM D 3612 Method B with direct oil injection and ASTM D 3612 Method C with headspace sampling.

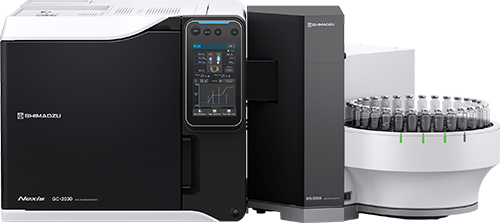

TOGAS System Lineup

System 220-90249-30 220-94925-30 220-94925-31
Reference Methods ASTM D 3612B ASTM D 3612C ASTM D 3612C
Detector TCD, MTN/FID TCD, MTN/FID TCD, MTN/FID, BID
Target Compounds in Transformer Oil H2, O2, N2, CH4, CO, CO2, C2 H2, O2, N2, CH4, CO, CO2, C2, C3, C4, Methanol H2, O2, N2, CH4, CO, CO2, C2, C3, C4, Methanol
Analysis Time 9 minutes 18 minutes 17 minutes

Chromatograms - 220-90249-30 / 220-94925-30

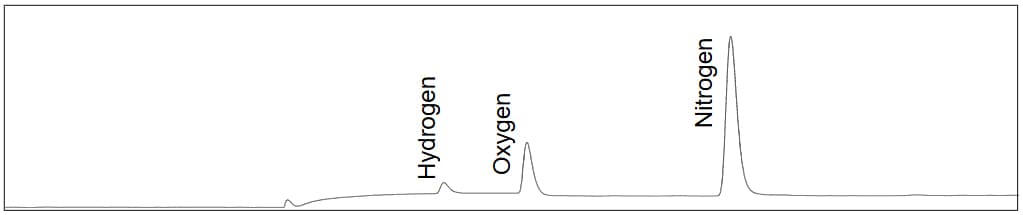

TCD Chromatogram of Transformer Oil per ASTM D3612

TCD Chromatogram of Transformer Oil per ASTM D3612

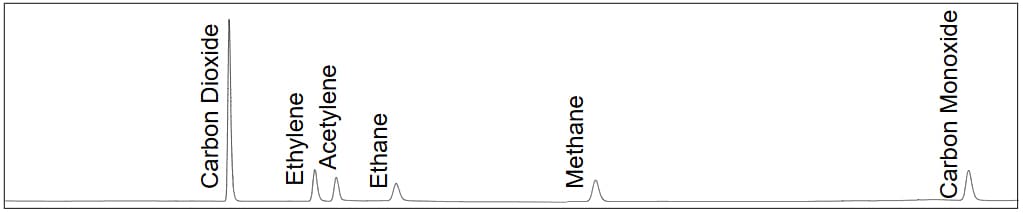

Jetanizer/FID Chromatogram of Transformer Oil per ASTM D3612

Jetanizer/FID Chromatogram of Transformer Oil per ASTM D3612

Chromatograms - 220-94925-31

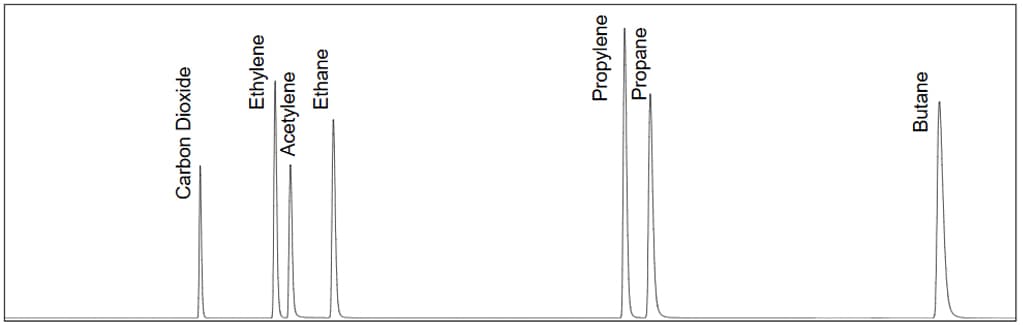

Jetanizer/FID Chromatogram of Transformer Oil per ASTM D3612C 220-94925-31

BID Chromatogram of Transformer Oil per ASTM D3612C 220-94925-31

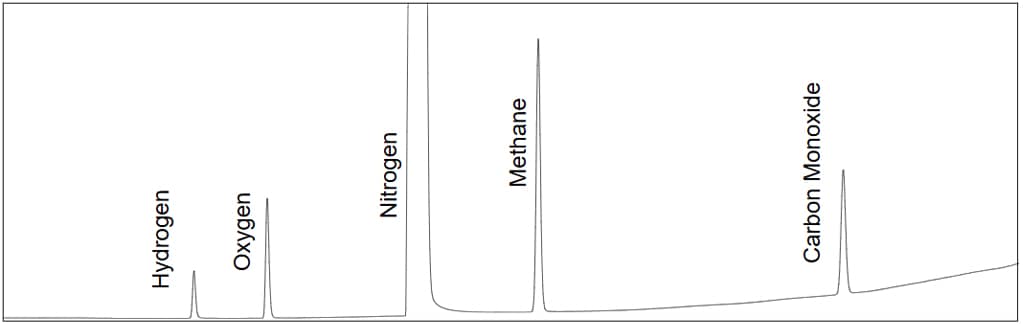

TCD Chromatogram for Permanent Gas Using Greenhouse Gas Analyzer 220-94937-30

Jetanizer/FID Chromatogram of Transformer Oil per ASTM D3612C 220-94925-31
