Nexis GC-2030 Gas Chromatograph

Premier Gas Chromatograph

Add Bookmark


GC-2030 Gas Chromatograph
Request More Information

Sensitive, user-friendly gas chromatograph with customizable features

Nexis GC-2030: Performance you can trust

The Shimadzu Nexis GC-2030 is a cutting-edge gas chromatograph designed for precision, flexibility, and efficiency across diverse analytical applications including petrochemical, pharmaceutical, environmental, food and forensics.

The GC-2030 also features Analytical Intelligence for fast, accurate analysis. Its automated workflows enable users to operate the system remotely, saving time and euort. The system can also diagnose itself, simplifying the maintenance process. With these intuitive features, users can easily operate the system and collect accurate data, regardless of their skill level.

Key Features

Key Features of the GC-2030 Nexis Gas Chromatograph

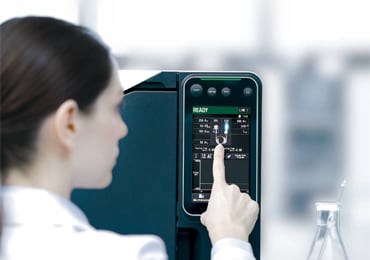

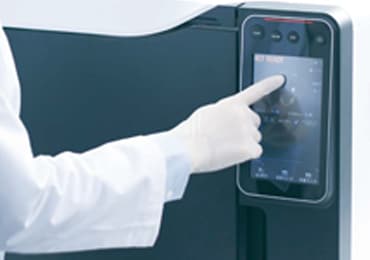

  • Touch panel display for easy operation

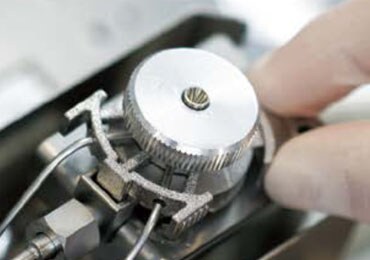

  • ClikTek technology for tool free inlet maintenance and column connection
  • Customizable Inlet and Detector configurations
  • Analytical intelligence for autonomous leak checking and workflows
  • Enhanced gas options for alternative carrier gas and advanced flow technologies

Quick Specs

Dimensions (WxDxH) 51.5 cm x 54 cm x 44 cm
Detectors Up to 4
GC/MS Compatibility Yes
Maximum Oven Temperature Ramp Rate 120°C / min (115 V unit is limited to 40°C / min for standard oven, 80°C / min when using oven insert)
Peak area repeatability <0.5% RSD **
Retention time repeatability < 0.0008 min **

"**AOC-30i Auto Injector, FID detector, tetradecane (2.5 ng to the column), split injection. Results may vary depending on the sample and the analytical conditions."



Analyze a variety of samples with an expandable system

  • Control multiple injector units and detectors

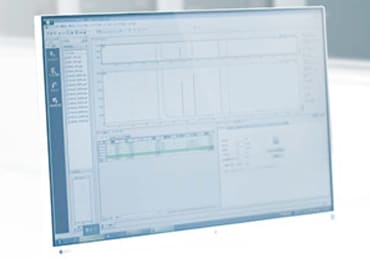

    The Nexis GC-2030 system can be easily expanded to perform different types of sample analysis. With LabSolutions™ software, you can control up to three injector units and four detectors at once. You can also attach capillary and packed columns to the system. These options enable you to perform multiple analysis methods with a single GC unit, saving benchtop space.

  • Analyze a variety of samples with an expandible system
Return to Top ^

Simplify operation with built-in analytical intelligence

  • Simplify operation with built-in analytical intelligence

  • Analytical Intelligence enables remote operation

    Nexis GC-2030 systems use Analytical Intelligence to perform fast, accurate analysis. With Clean Pilot, a system conformity test, and LabSolutions software, the instrument provides automated workflows from startup to analysis – even with remote operation, increasing productivity. These features enable the system to monitor and diagnose itself, handle issues without user input, and function as if operated by an expert analyst. That means operators can use these systems to acquire accurate data regardless of their skill level.

Return to Top ^

High-Sensitivity Detectors Support a Wide Variety of Analyses

  • Detect a range of compounds with high sensitivity

    The Nexis GC-2030 is compatible with various high-sensitivity detectors, including the barrier discharge ionization detector (BID-2030). This detector enables accurate analysis of compounds using a low-frequency dielectric barrier discharge plasma for ionization. Its sensitivity enables it to detect a variety of compounds other than helium (He) and neon (Ne) for versatile analysis.

    The GC-2030 can also pair with sulfur chemiluminescence detectors (SCDs). These detectors are the most sensitive GC detectors for measuring sulfur compounds. The Nexis SCD-2030 has an ultra-short flow path and high efficiency redox cell, providing the highest levels of sensitivity and stability.

  • High-Sensitivity Detectors Support a Wide Variety of Analyses
Return to Top ^

Featured Content

Return to Top ^

Citations

Videos

  • How To Perform Inlet Maintenance on the Shimadzu GC-2030

    • Gas Chromatography

    This video will walk you through the proper way to perform inlet maintenance on the Shimadzu GC-2030.

  • How to Perform a Manual Leak Check on the SPL for the Shimadzu GC-2030

    • Gas Chromatography

    This video demonstrates how to perform a manual leak check on the SPL for the Shimadzu GC-2030.

  • How to Perform an Automated Carrier Gas Leak Check on a Shimadzu GC-2030

    • Gas Chromatography

    In this video, we'll show you how to perform an automated carrier gas leak check on a Shimadzu GC-2030.

  • How To Properly Start Up the Shimadzu GC 2030

    • Gas Chromatography

    In this video, you will learn how to properly and safely start up the Shimadzu GC-2030 after a long shut down.

  • How To Safely Shut Down the Shimadzu GC-2030

    • Gas Chromatography

    This video shows you how to properly and safely shut down the Shimadzu GC-2030 instrument.

  • How To Extract the GC Hardware Configuration from a Data File

    • Gas Chromatography
    • LabSolutions Series

    This video will demonstrate how to extract the GC hardware configuration from a LabSolutions data file.

  • Shimadzu Nexis GC-2030 - Customers tell us their honest opinion on the Nexis GC-2030

    • Gas Chromatography

  • Shimadzu Nexis GC-2030 - Users express their wishes for the next generation GC

    • Gas Chromatography

  • Nexis GC-2030

    • Gas Chromatography

  • Nexis GC-2030 Split Filter

    • Gas Chromatography

  • Nexis GC-2030 ClickTek Nut

    • Gas Chromatography

  • Nexis GC-2030 Smart Jig for Click Tek

    • Gas Chromatography

  • Nexis GC-2030 ClickTek Connector & Oven Light

    • Gas Chromatography

  • Converting GC Methods from Helium to Hydrogen Using the Shimadzu Nexis GC-2030

    Helium is the most commonly used carrier gas for gas chromatography because it provides fast analyses and high chromatographic efficiency. However, because of recent price hikes and supply interruptions, many labs are looking to replace helium with other carrier gases.

  • Webinar - Comprehensive Analytical Solutions for Lubricant Condition Monitoring
