Clinical Automation Module

CLAM-2040 - Fully Automated Sample Preparation Module for LC-MS/MS

Add Bookmark

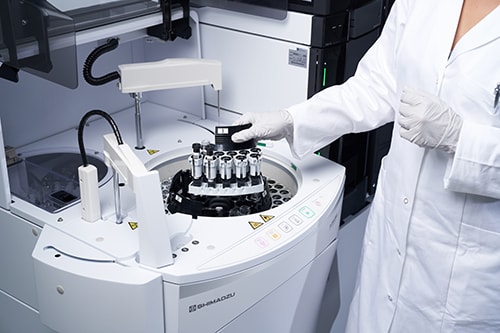

Clinical Automation Module CLAM-2040 - Fully Automated Sample Preparation Module for LC-MS/MS
Request More Information

Lower the Barriers for New Workflow Implementation

Fully Automated Sample Preparation Directly Connected to an LC-MS/MS System

Automation of manual procedures has been proven to increase productivity and savings while freeing time for added value tasks. This economic logic applies to clinical research laboratories who employ highly skilled employees. The Shimadzu Laboratory Automation module for LCMS is designed for laboratories running routine LCMS analyses, reducing repetitive bench work for skilled staff while improving throughput and reproducibility.

For Research Use Only. Not for use in diagnostics procedures.

Key Features

Key features of Clinical Automation Module CLAM-2040 - Fully Automated Sample Preparation Module for LC-MS/MS
  • Automation from sample preparation to analysis
  • Flexibility to create custom sample processing workflows
  • CLAM-2040 allows for parallel sample handling
  • CLAM-2040 allows for time-sensitive sample processing
  • CLAM-2040 operates exclusively with Shimadzu LCMS and is compatible with HPLC 40-series
  • Liquid and solid waste is stored within the CLAM-2040
  • Software monitors liquids and instrument parameters
  • Software monitors data and parameters over time

Quick Specs

Volume in Preparation Vial Max 350 μL
Preparation Functions Sample dispensing, reagent dispensing, stirring, suction filtration, and heating
* Max. 20 steps can be set in a protocol.
Capacity of Samples Max. 60 samples
Capacity of Reagents Max. 20 bottles
Sample Dispensing Volume range from 10 to 100 μL / 0.5 μL step, Liquid detection and shock detection
Reagent Dispensing Volume range from 10 to 100 μL / 0.5 μL step, Liquid detection and shock detection
Throughput Up to 23 samples per hour
* Under specified conditions.



Automates Sample Preparation Steps for Improved Laboratory Efficiency

  • Sample/Reagent Transfer, Dilution, Vortexing, Heating, Vacuum Filtration, Sample Transfer to Autosampler

    The Laboratory Automation Module performs complete sample handling, including sample and reagent pipetting, dilution, vortexing, heating, vacuum filtration to remove protein precipitates, and transfer to the autosampler for injection for subsequent LC-MS/MS analysis.

  • Sample/Reagent Transfer, Dilution, Vortexing, Heating, Vacuum Filtration, Sample Transfer to Autosampler
Return to Top ^

Seamless Batch Interruption for Urgent Analyses

  • Seamless Batch Interruption

  • Insert priority samples and refill consumables, and the batch automatically resumes

    The Laboratory Module intelligent management of samples and priority shifting will prove key in day-to-day operation and meeting changing and challenging deadlines. The CLAM-2040 has been designed to enable seamless reprioritization. The batch automatically resumes once the priority samples are completed.

Return to Top ^

Simplifies the Process for New Assay Implementation

  • Ready-to-Deploy Analytical Kits

    Shimadzu and Recipe are collaborating to advance the fully automated platform and provide complete analytical kits for research workflows. Recipe Kits offer a comprehensive package including mobile phases, autosampler washes, calibrators, controls, internal standards, and, when needed, columns and filters. Learn more about our target workflows and their analytical figures of merit. For Research Use Only. Not for use in diagnostic procedures.

  • Easier Implementation Ready-to-Deploy Analytical Kits
Return to Top ^
