Nexera Mikros - Columns

Supporting Micro Flowrate Range Liquid Chromatography Mass Spectrometry System

Shim-pack™ MC C18

Shim-pack™ MC C18

Versatility

  • Shim-pack MC C18 column with 1.9 μm UHPLC particle achieves excellent separation and peak shape.
  • The high pressure rating of 70 MPa allows these columns to be compatible with a range of mobile phase flow rates from 1 to dozens of μL per minute.

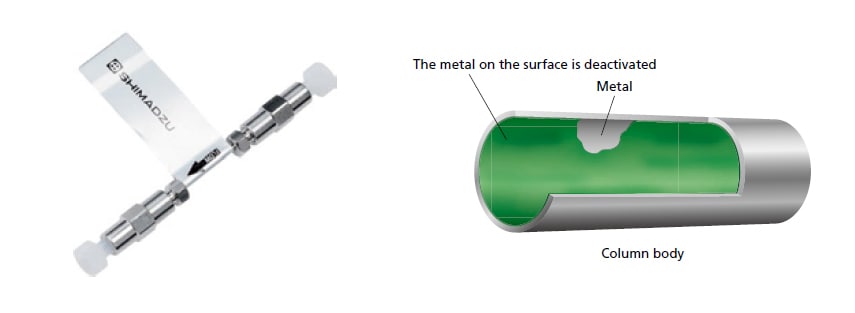

  • The metal coordinative adsorption is suppressed by deactivating the column parts in contact with the solution.
  • Both small and large molecule compounds, such as peptides, can be analyzed.
  • Excellent durability can be achieved even if the biological sample analysis.

Shim-pack MC PLONAS Series

Shim-pack MC PLONAS Series

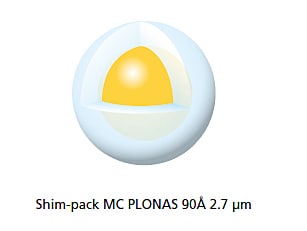

Superior Performances with Superficially Porous Particles (SPP)

  • Shim-pack MC PLONAS 2.7 μm columns reduce the back pressure yet maintain the performance of a sub 2 μm fully porous particle column. The pressure limit is 40 MPa.
  • Achieve lower LODs and LOQs, better resolution, and greater reproducibility using the unique superficially porous particle found in Shim-pack MC PLONAS.
  • Greater dimensional offerings allows for higher efficiency with better resolving power for challenging applications.
  • An array of pore sizes designed to meet the needs of any application.
  • Increased ruggedness because of larger porosity frits resulting in less clogging compared to competitor columns.
  • Excellent column-to-column and lot-to-lot reproducibility.

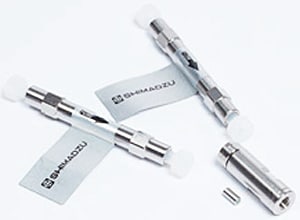

Shim-pack Trap Columns

Trap Columns Wide Portfolio

  • Shim-pack MCT C18/C8
    70 MPa pressure limitation and a unique modification on the column inner surface protects against absorption of the molecule.
  • Shim-pack MCT LC18/LC8
    A small-volume cartridge column with 40 MPa pressure limit. Useful in reducing the gradient delay for a low flow rate.

Shim-pack Trap Columns

Shim-pack MCT series
P/N Bonded Phase Diameter (mm) Length (mm)
228-59938-91

C18
0.3

35
228-59938-92 0.5
228-59939-91

C8
0.3

35
228-59939-92 0.5
Shim-pack MCT L series (particle size 5 μm)
P/N Bonded Phase Diameter (mm) Length (mm)
227-32701-01
Trap column holder for Shim-pack MCT L
227-32702-01 C18 0.3

5
227-32703-01 C8 0.5

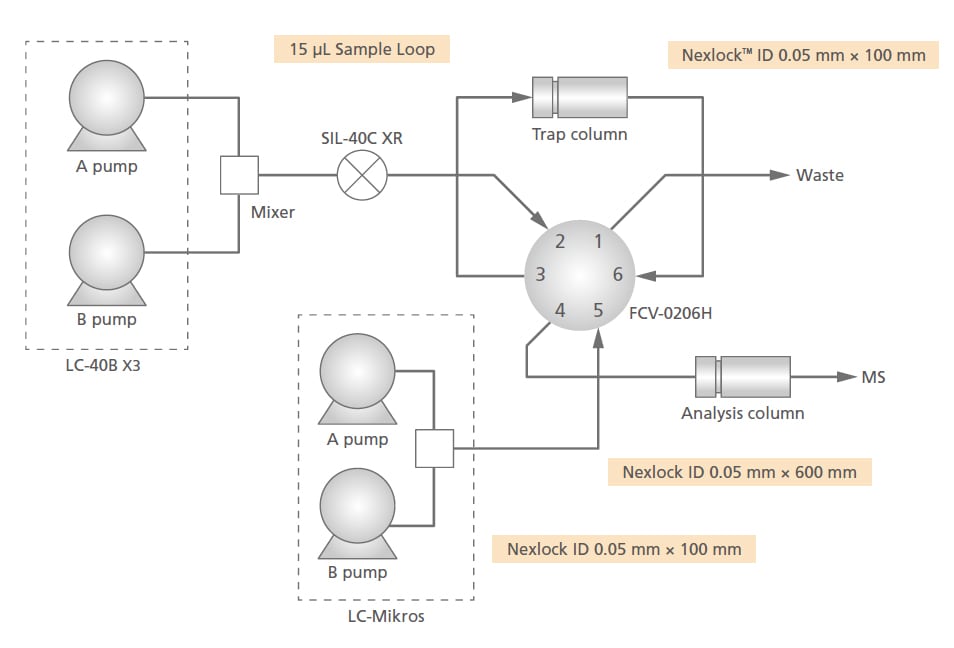

Nexera Mikros: Trap and Elute Configuration

The trap and elute system can be constructed by using a dedicated piping kit (228-71751-42).

Trap and Elute Configuration
