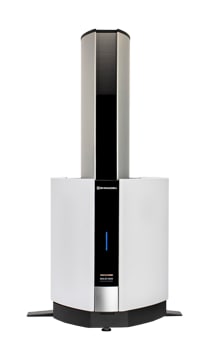

MALDI-8020 EasyCare Benchtop MALDI-TOF Mass Spectrometer
Matrix-Assisted Laser Desorption/Ionization Time-of-Flight Mass Spectrometer
Powerful benchtop MALDI ideally fit for fast / accurate microbial identification
The MALDI-8020 EasyCare system delivers high-end user features while saving laboratory space
The MALDI-8020 EasyCare single-polarity linear MALDI-TOF mass spectrometer delivers speed and accuracy within a compact design. You can increase throughput and save time with its 200 Hz solid-state laser. The system’s design includes a rapid-moving sample stage and load lock chamber for fast sample introduction and data acquisition.

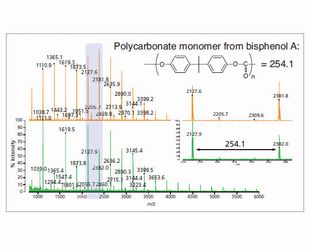

The MALDI-8020 EasyCare is uniquely suited for a variety of applications, from peptides, proteins to polymer characterization. The system is fully contained within its compact design, and when connected to our powerful online Microbial Databases identify 10s of thousands bacterial species as well as yeast and fungi.
Key Features

- Linear MALDI-TOF system supports MS Imaging at a benchtop scale
- Fast MS with a 200 Hz solid-state laser
- WideBore ion optics technology for class-leading sensitivity and resolution
- TrueClean technology enables automated ion optics cleaning
- EasyCare technology enables optics cleaning and detector and deflector tuning
- Load-lock chamber for rapid sample introduction
- Quiet operation (<55 dB) from oil-free diaphragm pump
Quick Specs
Laser Speed | 200 Hz |
---|---|

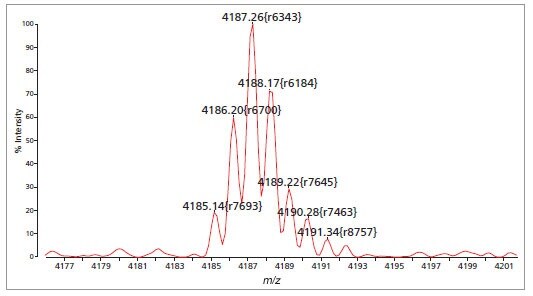

Resolution | >5000 FWHM – ACTH 18-39 (m/z 2465) |
Polarity | Linear Positive |
Size | 450 mm x 745 mm x 1055 mm |
Sound | Quiet (<55 dB) |

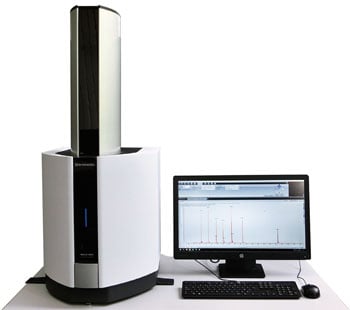

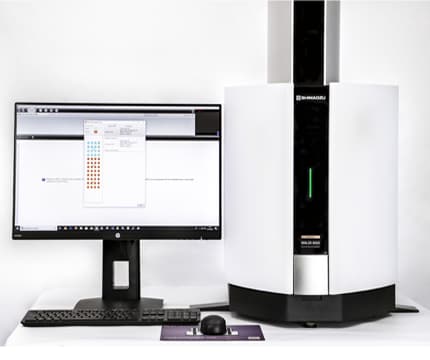

A compact, benchtop footprint designed to save laboratory space
-
The MALDI-8020 EC saves benchtop space without sacrificing performance
The system spans a width of only 450 mm and easily fits into tight spaces on a laboratory bench. It is also light for easy transport, weighing only 92 kg. While this system is small, it still has high sensitivity and resolving power for a linear TOF analyzer.
-
Seamless/ Fully integrated connection to expansive online Microbial DB
-
-
Leverage Shimadzu advanced benchtop platfrorm and identify mircrooganism against the most expansive bacteria / yeast / fungi database. Ideal for sterility testing and food safety.
- • Seamless access to Mabritec central through Shimadzu SampleStation and AuraSolution automation software. Review results directly from Shimadzu Software
- • Acquire spectra in minutes and get results in seconds
- • Leverage EasyCare for extended up time.
- • Access MicrobialTrack online and search against the largest existing bacteria DB
- • 21 CFT Part 11 compliance software available
Routine maintenance in your hands
-
Manually clean the ion optics and autotune the instrument.
MALDI-8020 EC units enable users to maintain their systems by performing instrument maintenance through manually cleaning the instrument optics. Optics can be easily accessed by opening the instrument side panel and then removed for cleaning. The MALDI solutions software that comes with the EasyCare units allows end users to perform instrument tuning with two options: detector only, or a full tuning workflow, which involves the manual optics cleaning, as well as deflector and detector tuning. This offers the opportunity to improve instrument performance without the need for a service visit.
-
