MALDI-8030 - Applications

Dual-Polarity Benchtop Linear MALDI-TOF Mass Spectrometer

{"hasMore":true,"more":{"id":"tbaleAnchor_more","label":"More"},"anchors":[{"id":"tbaleAnchor_applications","label":"Applications"},{"id":"tbaleAnchor_technical","label":"Technical Documents"},{"id":"tbaleAnchor_manual","label":"Manuals"}]} {"title":"Applications","columnTitle":"Applications","source":"product","key":4650,"filter_types":["applications","application_note","posters"],"config_list":[],"anchor":"tbaleAnchor_applications"} {"title":"Technical Documents","columnTitle":"Technical Documents","source":"product","key":4650,"filter_types":["technical","technical_reports","white_papers","primers"],"config_list":[],"anchor":"tbaleAnchor_technical"} {"title":"Manuals","columnTitle":"Manuals","source":"product","key":4650,"filter_types":["manuals"],"config_list":[],"anchor":"tbaleAnchor_manual"}

Determination of molecular weight of nucleic acids and internal sequence analysis by In-source decay (ISD)

Determination of molecular weight of nucleic acids and internal sequence analysis by In-source decay (ISD)

Determination of molecular weight of nucleic acids and internal sequence analysis by In-source decay (ISD)



Polymer analysis

Polymer analysis

MALDI Polymer Analysis



Orange spectrum: polycarbonate standard
Green spectrum: polycarbonate from a CD
Inset: expanded view of the highlighted region

Example of higher mass analysis using immunoglobulin A (IgA)

Example of higher mass analysis using immunoglobulin A (IgA)

Example of higher mass analysis using immunoglobulin A (IgA)

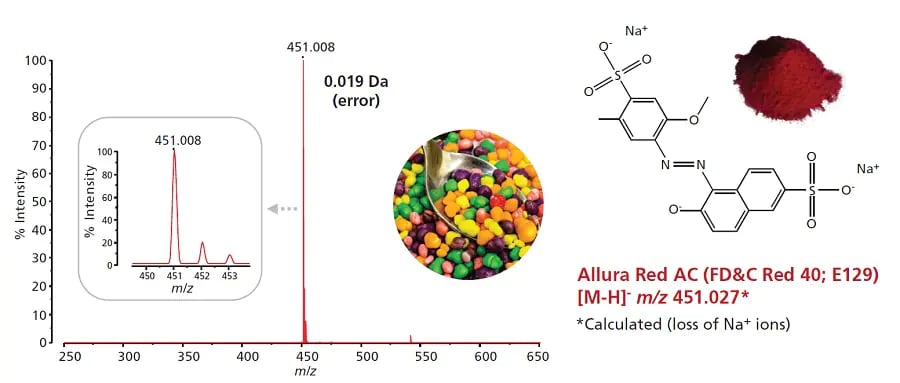

Food colorants in sweets/candies

Food colorants in sweets/candies

The confectionery industry regulates colorants in sweets/candies prior to approval for release of the product. The MALDI-8030 can detect FD&C and E number small molecule compounds (in this example, Allura red) using a combination of a simple workflow and the class-leading MALDI linear TOF mass accuracy and resolution, indicating it is a suitable analytical solution for screening this type of sample.

food colorants in sweets/candies



Analysis of pigments used in cosmetics/lipsticks

Analysis of pigments used in cosmetics/lipsticks

The MALDI-8030 is easily able to determine the presence of pigments suitable for vegan/organic/halal cosmetics (lipstick in example shown). The high quality data produces good similarity between the observed and theoretical isotope distribution. This is useful as further confidence for identification of the pigment.

food colorants in sweets/candies

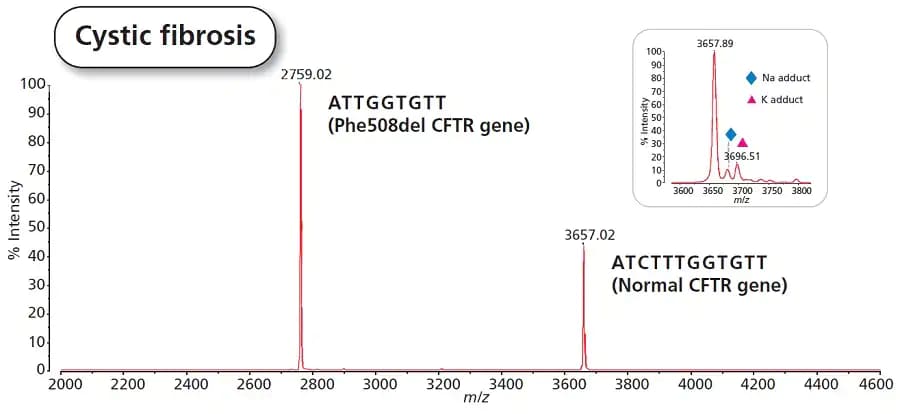

Genotyping for teaching demonstrations

Genotyping for teaching demonstrations

Analysis of oligonucleotides on the MALDI-8030 is easy making it a good example for teaching laboratory demonstrations and avoiding the chores of time-consuming gels/ethidium bromide detection of oligonucleotides.

The dual-polarity ion source of the MALDI-8030 allows the flexibility to analyze oligonucleotides in negative mode (main spectrum), resulting in a cleaner mass spectrum compared to positive ion mode containing adducts (see inset).



Genotyping  for teaching demonstrations
