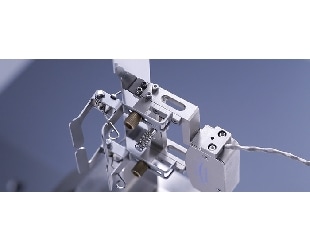

SSG-H Series

One-Touch, Strain Gauge Extensometers

The SSG-H series of strain gauge extensometers are compliant with ISO, JIS, and ASTM tensile test standards for hard plastics and metal materials Featuring a wide elongation measurement range with the ability to measure using small gauge lengths, these lightweight, clip-on strain gauge extensometers attach to both rod and flat plate specimens.

Features

1 µm Absolute Accuracy and 0.5% Relative Accuracy - Compliant with Plastic Tensile Test and Elastic Modulus Measurement Requirements of ISO 527, JIS K 7161, and ASTM D638

Plastic tensile test standards, represented by ISO 527, JIS K 7161, and ASTM D638, require highly accurate displacement measurements.
SSG-H series extensometers are compliant with the aforementioned plastic tensile testing standards and are used widely by plastics manufacturers, public testing institutions, and universities...
