Trapezium X Materials Testing Software

Trapezium X is the most innovative universal testing software package, and common to all Shimadzu universal test frames. Comprehensive features and an intuitive user interface greatly improve testing efficiency. The base single software provides unidirectional testing control while additional modules provide extra functionality.

Additional modules:

  • Cycle Module – for bidirectional testing
  • Control Module – the ability to create any testing profile
  • Texture Analysis Software – dedicated food texture analysis software
  • Concrete Module – concrete testing, for UH-X and UH-FX series
  • Recorder Software – the software acts as a data logger, for UH-X and UH-FX series

Features

  • Enables Intuitive Operation

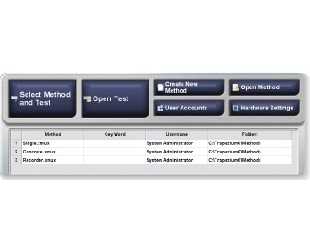

    Enables Intuitive Operation
    Search files and select parameters quickly by simply touching the screen to perform consecutive tests efficiently.

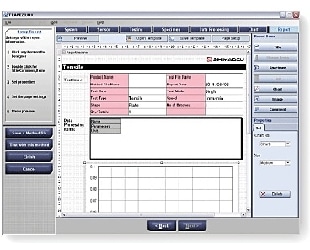

    Data Processing Settings Screen
    (Metal is selected as the material on the screen, but rubber and plastic are also available.)
    Screen for setting specimen quantity and dimensions
  • Quickly Obtain the Data Needed
    Quickly Obtain the Data Needed

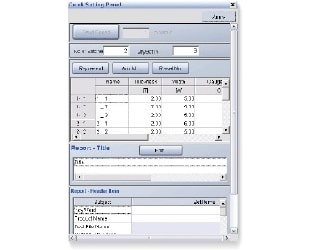

    The Quick Setting Panel enables quickly entering speed, dimensions, report information, and other settings directly into the Main screen.
    More advanced navigation, with a teaching function
    Retest, Add test, and File merge functions
Learn more

Videos

  • Streamlining Mechanical Testing of Composites with TRAPEZIUMX-V

    • Universal / Tensile Testing Machine Software

    Mechanical testing of composite materials is key to ensuring that final products meet the highest performance and safety standards. With Shimadzu's TRAPEZIUMX-V software, you can perform a wide range of ASTM and ISO standard mechanical test methods, including tensile, compression, bending, shear and peeling.

Learn More
