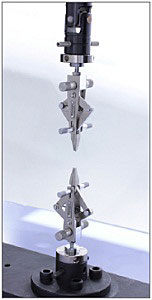

100 N Pantograph Grips

Features:

Ideal for testing rubber, textiles, and soft plastics
Type 1 and type 2 models with maximum capacity of 1 kN (220 lbf) and 5 kN (1,100 lbf)
Quick clamping mechanism with a self-tightening action
Fitted with parallel-grooved grip faces for securing soft specimens

Relevant Materials:
Rubber, Soft Plastics, Textiles

Relevant Specimens:
Plates

Pantograph grips use a simple spring design to hold and apply pressure to specimens during tensile testing. These grips are mainly used for tensile testing plate specimens of rubber, textiles, or soft plastics.

There are two types of pantograph grips: type 1 and type 2. Type 1 pantograph grips suit wider, thinner samples, whereas type 2 pantograph grips are better for narrower and thicker samples. Both grip types are fitted with parallel-grooved grip faces to enhance soft specimen clamping.
