inspeXio™ 7000 - Options
Microfocus X-Ray CT System
Optional Modules
Optional Module “Core Boost”
“Core Boost” is an optional module that extends the 2 functions, “Boost Reconstruction” and “ROI Reconstruction”, to the control software for the inspeXio 7000, inspeXio64.

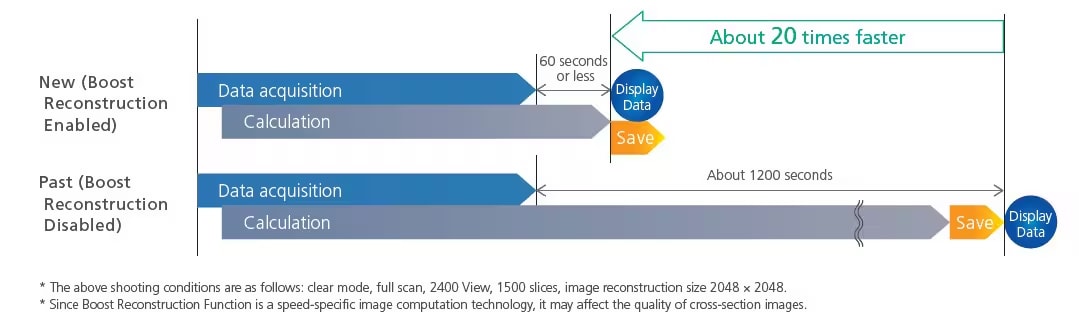

Boost Reconstruction
Boost Reconstruction Function is an image reconstruction calculation process that uses our proprietary high-speed calculation technology for image reconstruction calculation processing of high-pixel CT images to achieve even higher speed.
Faster image reconstruction at 2048 × 2048 pixels or 4096 × 4096 pixels.
ROI Reconstruction
ROI Reconstruction Function is an image reconstruction calculation process that uses our unique ROI reconstruction technology to improve the image quality of data taken when a part of a workpiece protrudes (truncates) from the left and right sides of an X-ray fluoroscopic image during CT imaging. This reduces shading artifacts that traditionally occur from the truncation to the entire image, making it easier to analyze with image processing software.
-

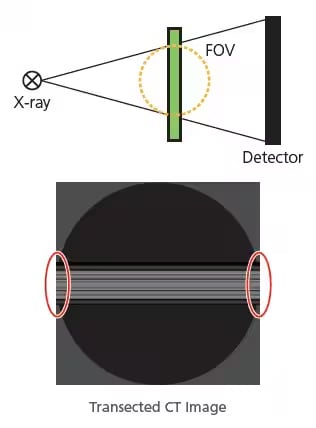

What’s “Truncation”…?
A part of a workpiece protrudes from the left and right sides of a fluoroscopic image during a CT scan.
-

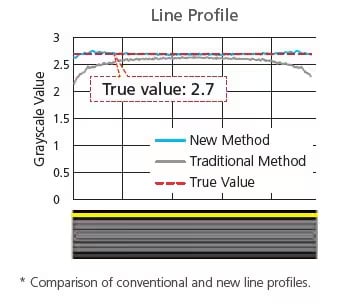

Image Comparison
ROI image reconstruction reduces shading artifacts more than traditional methods, so grayscale values are close to true value and uniform.
-

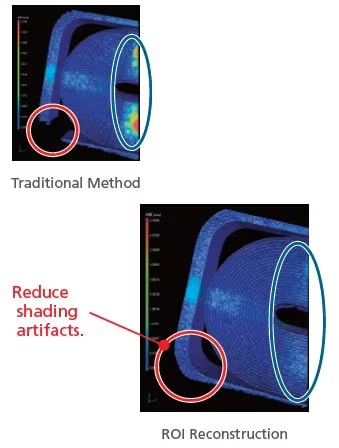

Advantage
The reduced shading artifacts make thresholding easier.
Optional Software

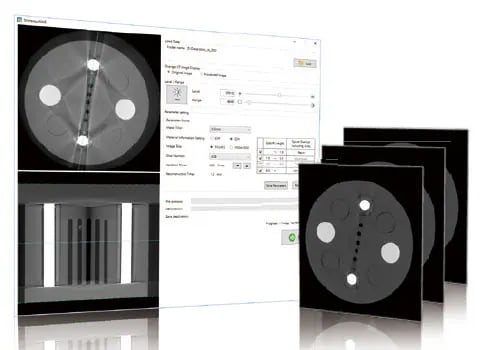

Metal Artifact Reduction Software
This is a reconstruction software program used to reduce metal artifacts in cross-sectional images. This software allows for easier and more accurate analyses of the cross-sectional images.
(Smart Vision Corporation)

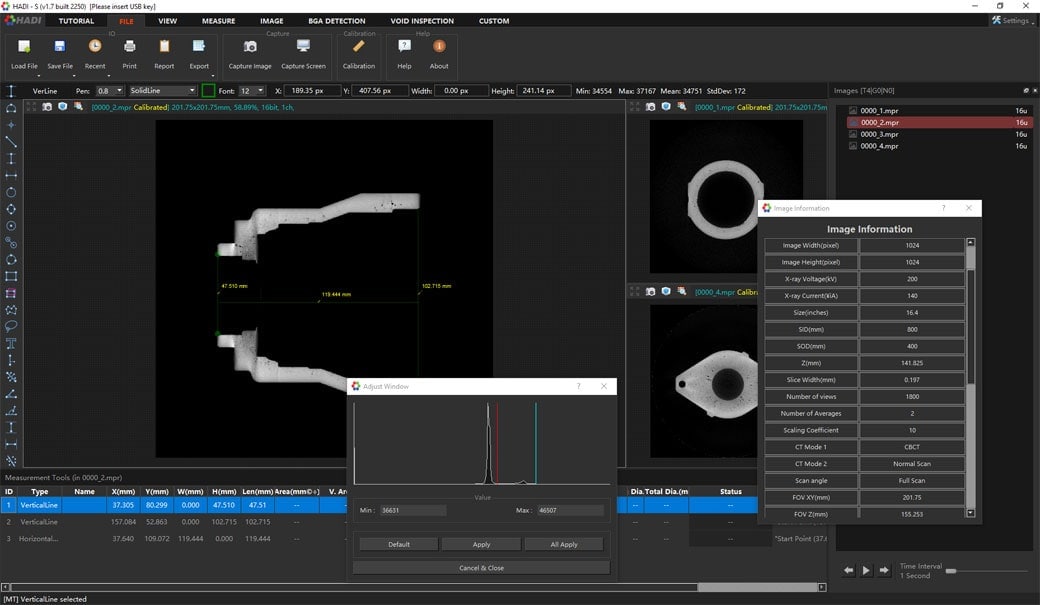

HADI-S
2D Image Processing Software
This two dimensional image processing software enables sophisticated image processing. Various image processing such as dimension measurement and filtering is possible for transmission images and cross-sectional images.
(Hexagon AB)

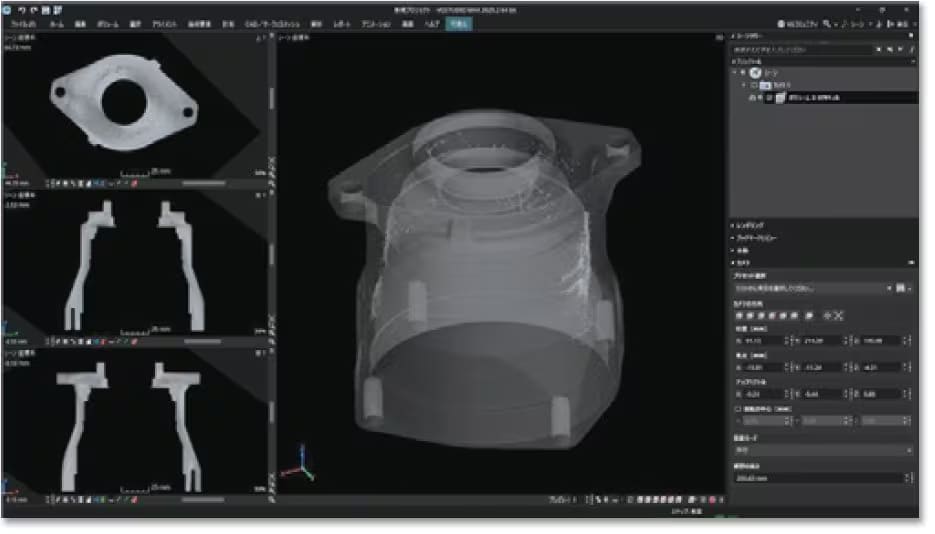

VGSTUDIO MAX
3D Image Processing Software
This is an extended version of VGSTUDIO. Extended functionality includes animation creation (rotation, truncating, and viewpoint movement), measurement of length, angle, minimum distance, histogram, volume, surface area, void ratio, ROI extraction, image filtering, and multiple 3D image alignment.
