Revolutionize Surface Analysis with SPM-9700HT: Uncover Nano Secrets

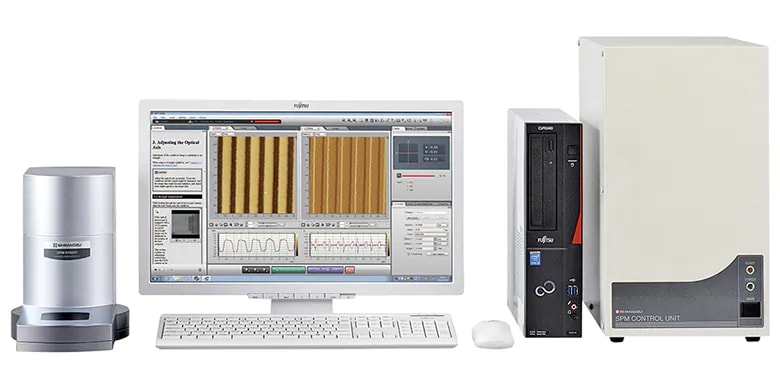

Scanning Probe Microscope/Atomic Force Microscope

Scanning probe microscope (SPM) is a generic term for microscopes that scan sample surfaces with an extremely sharp probe to observe their three-dimensional image or local properties at high magnifications. The SPM-9700HT Plus takes high-throughput observations to the next level.

SPM-9700HT, Nano 3D Mapping, and the Analytical Intelligence logo are trademarks of Shimadzu Corporation or its affiliated companies in Japan and/or other countries.
This instrument is not available in European regions and may also be unavailable in certain other countries. Please contact your local Shimadzu representative for information on availability.

Features

Nano 3D Mapping Fast

The time required for physical property mapping has been significantly reduced compared to the previous machine.

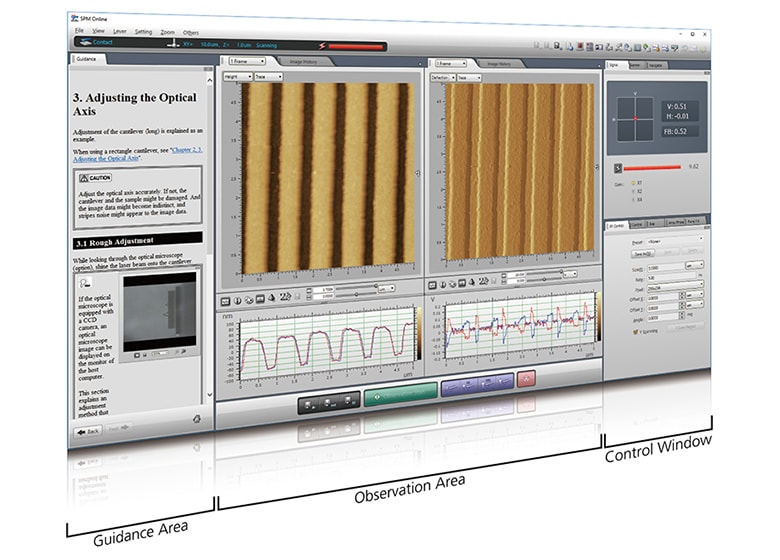

NanoAssist Optimizes Observation Conditions

Only the observation range needs to be set. Other observation conditions are set automatically.
High-Throughput Scanner Shortens Observation Times

With the optical lever system and cantilever integrated into the head, samples can be replaced by simply sliding the head.

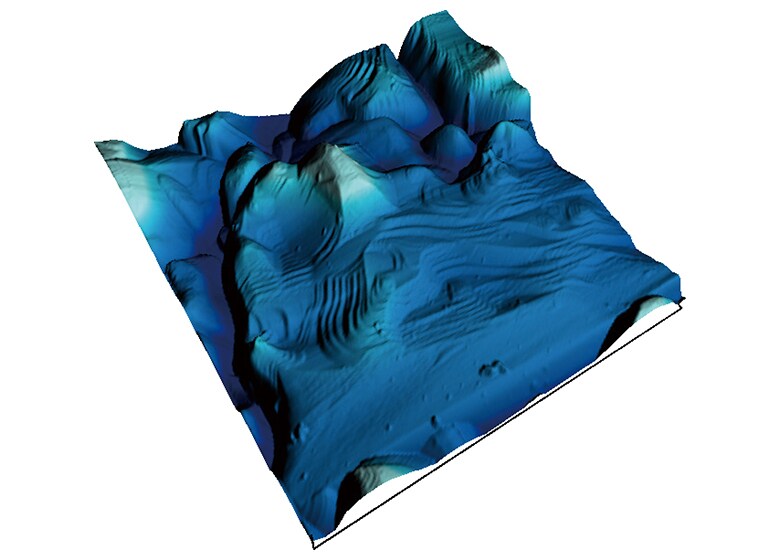

Wide Variety of 3D Rendering Functions Using Mouse Operations

Confirm images magnified in a variety of directions easily using the mouse, and even analyze 3D cross-section profiles.

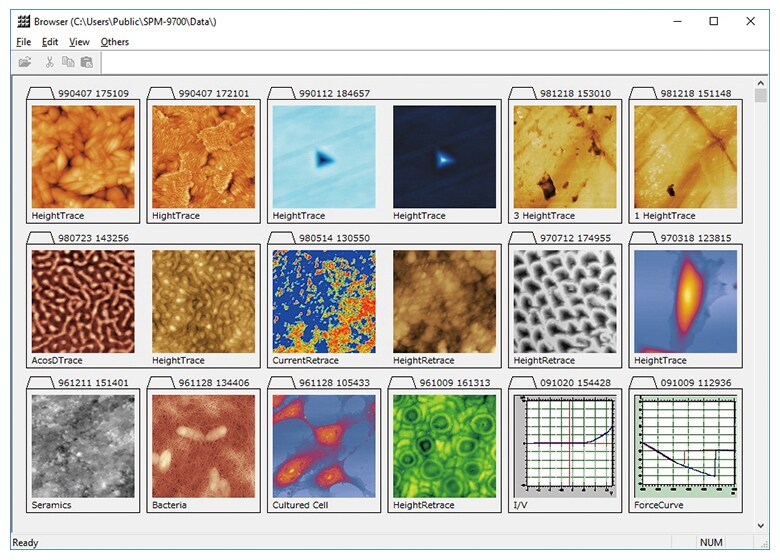

Functionality and Expandability to Meet a Wide Range of Requirements

A generous selection of measurement modes and excellent expandability helps ensure reliable measurements, regardless of the properties that a wide variety of samples may have, such as hardness or electrical conductivity.
ANALYTICAL INTELLIGENCE

Learn more

Videos

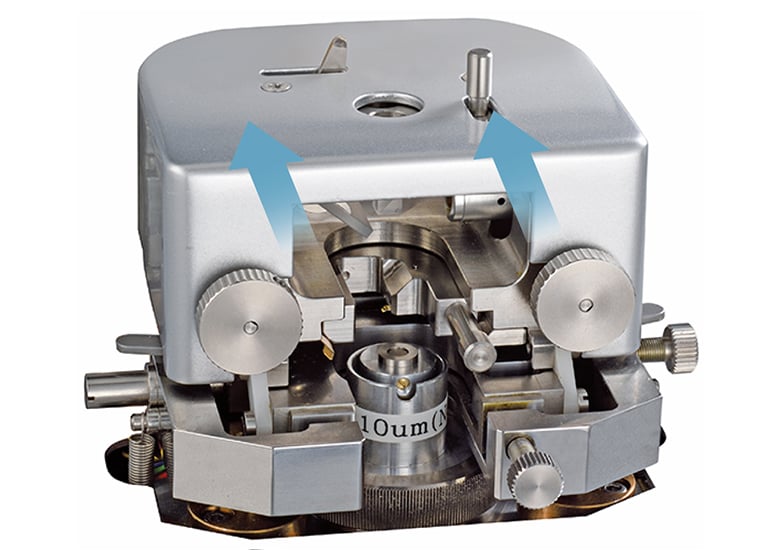

SPM-9700HT Plus Head-Slide Mechanism

Surface Analysis

Sample replacement without stopping laser irradiation, outstanding irradiation stability, and significantly shorter analysis times.
*The operating procedures are the same for SPM-9700HT Plus.

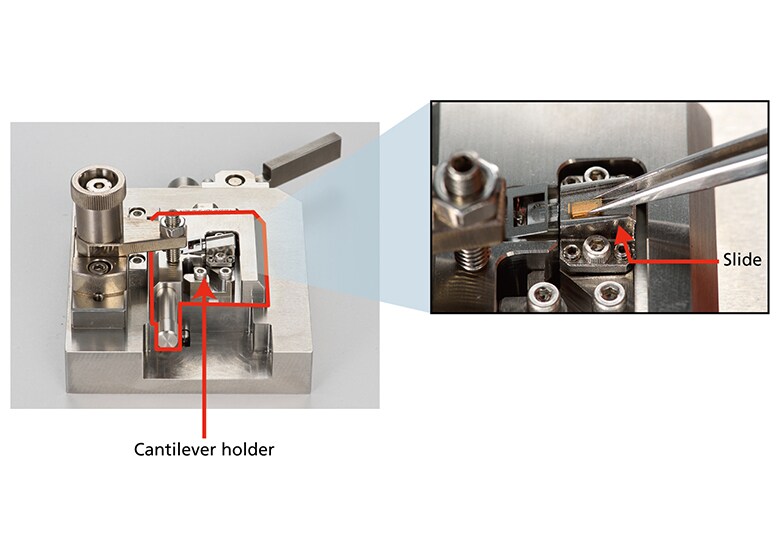

SPM-9700HT Plus Cantilever Mounting Jig

Surface Analysis

This jig ensures easy and secure mounting of the cantilever.
*The operating procedures are the same for SPM-9700HT Plus.

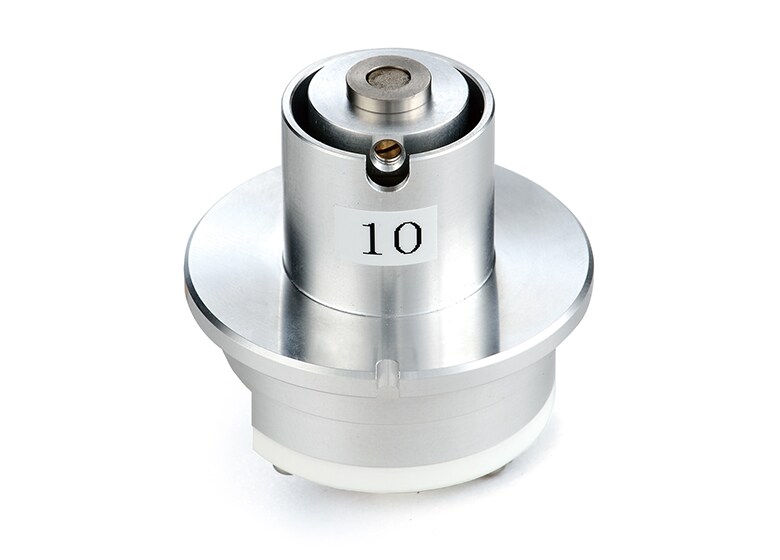

SPM-9700HT Plus High-Throughput Scanner

Surface Analysis

Due to the newly developed HT scanner that achieves a high-speed response and optimizing software and the design of the control system, acquisition of the image data is now available at a speed of less than 5 times or more(our ratio). The scanner can easily be replaced so existing scanners can be used.
*The operating procedures are the same for SPM-9700HT Plus.
