LabSolutions™ UV-Vis

Analytical Data System for UV-Vis Spectrophotometers


Shimadzu UV-Vis makes your work faster and easier.

LabSolutions UV-Vis Software Screens





Simple – Easy to use for everyone

From the start, the software's user-friendliness allows users to perform operations with ease.
With extensive features, LabSolutions UV-Vis meets a wide range of users' expectations.

Simple Design

LabSolutions UV-Vis Software Simple Design

Four Measurement Modes

  • It permits four measurement modes: spectrum, quantitative, photometric, and time course.
  • Users can open multiple measurement modes at the same time, so that data analysis can be performed in one mode while collecting data in another mode.

LabSolutions UV-Vis Software Measurement Modes




Measurement

  • Post-measurement correction of waveform, peak detection, and printing can be done automatically.
  • Sample names to analyze are collected and read from a CSV file in advance.
  • In quantitative measurement and photometric measurement, samples to be re-measured can be set up with ease.

LabSolutions UV-Vis Software Measurement Screen

Graph

  • Horizontal axis of the spectral graph can be set to wavelength, wavenumber or energy.
  • Fine adjustments can be made with one click on the graph scale.
  • Graphs can be easily pasted into other applications as bitmap images.

LabSolutions UV-Vis Software Graphs

Report

LabSolutions UV-Vis Software Report Screens

Smart – Optimize quality control



In addition to providing measurement and analysis results, judgment results are also provided.

With this feature, LabSolutions UV-Vis enables users to maintain a product's quality.

Spectra Evaluation Function

Spectra Evaluation Function


  • Evaluation conditions can be saved to a file.
  • Operations from measurement to judgement can be performed automatically.
  • Evaluation results report can be printed with one click.

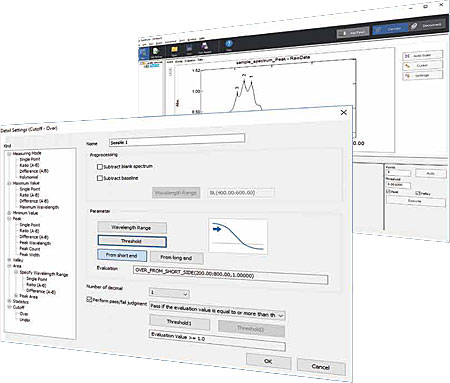

Detail Settings Window

Case 1: Validation Test in Drug Development

  • Peak exists in the 270 to 280 nm range.
  • Peak does not exist in the range > 320 nm.
  • Only one peak exists in the 260 to 300 nm range.
  • The peak intensity is > 0.45 Abs.

Case 1: Validation Test in Drug Development

Case 2: Quality Inspection of UV Cut Filter

  • The first wavelength is < 550 nm when transmittance exceeds 50%.
  • Maximum transmittance below 400 nm is < 1.0 %.
  • Minimum transmittance above 550 nm is > 80.0 %.
  • Average transmittance above 550 nm is > 85.0 %.

Case 2: Quality Inspection of UV Cut Filter

Color Analysis (Optional)

  • Color calculation can be added to evaluation function.
  • In addition to JIS, ISO compatible calculations can be performed.

Color Analysis (Optional)

Seamless – Easy transfer of measurement data

  • Users want to export measurement data immediately in text format,
  • and import for analysis in other software, such as Excel.

Measurement Data Transfer

Other Convenient Functions

Predict the Time Required for Scanning

Predict the Time Required for Scanning

Display the Concentration Data in Real Time

Display the Concentration Data in Real Time

Automatically Set the Optimal Parameter for Peak Detection

Automatically Set the Optimal Parameter for Peak Detection

Easy to Transfer Data Processing Table

Easy to Transfer Data Processing Table

LabSolutions is a trademark of Shimadzu Corporation.

Excel is either registered trademarks or trademarks of Microsoft Corp. in the United States and/or other countries.

UV-VIS Spectrophotometer Series Controlled with LabSolutions UV-Vis



For Research Use Only. Not for use in diagnostic procedures.
