UV-1900i Plus UV-Vis Spectrophotometer

UV-Vis Spectrophotometer

Add Bookmark






UV-1900i Plus UV-Vis Spectrometer

Request More Information

UV-Vis powerhouse that easily handles both standard testing and research analysis

The UV-1900i Plus UV-Vis spectrophotometer analyzes and verifies materials in many R&D, quality control and research applications

The UV-1900i Plus double-beam spectrophotometer is a flexible instrument that you can operate as a standalone unit using the touch panel or with a PC combined with the included LabSolutions™ UV-Vis software. This technology simplifies data acquisition, analysis, and project supervision.

The UV-1900i Plus system can also pair with Shimadzu’s software compliance package to provide total data integrity, user administration and audit trails to full compliance with FDA 21 CFR Part 11.

Key Features

Key features of the UV-1900i Plus UV-Vis Spectrometer
  • Spectrum, quantitation, photometric, and time course measurement modes
  • High performance and Ultra-fast scan to meet diverse needs
  • Low stray light to make accurate measurements at high absorbance readings
  • High reproducibility and repeatability accuracy
  • Full Support for Pharmacopeia, GLP/GMP, FDA 21 CFR Part 11 and Other Regulations

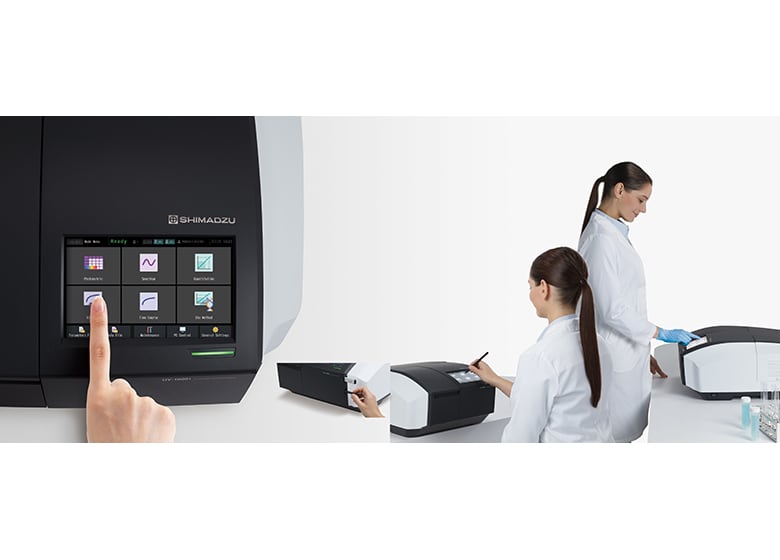

  • Easy-to-use touch screen interface

Quick Specs

Wavelength Range 190-1100 nm
Maximum Abs 4 Abs
Scan Speed Up to 29,000 nm/sec
Compatible Accessories Multi-cell, temperature control, autosampler, thin films, Thermal Melt and more.
PC Requirement Can be operated standalone or with PC



Pharmaceuticals and life sciences analysis

  • Strong performance for diverse scientific research applications

    Busy pharmaceutical and life sciences laboratories demand instruments that are precise, durable and efficient. The UV-1900i Plus system is the optimal choice for routine pharmaceutical, biopharmaceutical and life science analyses, quality assurance and R&D. Applications include DNA and protein quantitation, dissolution testing and thermal melt analysis of biomolecules.

    For example, you can use the UV-1900i Plus UV-Vis spectrophotometer for nucleic acid quantitation. Trace quantities down to 0.7 μL can be measured using a TrayCell® or Nano Stick. Using TrayCell, a calibration curve for 4 μL of λDNA was obtained in the range between 25 ng/μL and 500 ng/μL. Bio methods come standard on the front panel to quickly run routine tests without the need of a PC.

  • Pharmaceutical and life sciences analysis for UV-Vis Spectrophotometers
Return to Top ^

Food and beverage analysis

  • Food and beverage analysis with UV-Vis

  • Fast, reliable analysis of ingredients and contaminants

    Food and beverage quality and safety are paramount concerns and UV-Vis spectroscopy is an important way to help ensure that products meet quality standards and are safe for consumption. The UV-1900i Plus system is used to analyze food and beverages for adulteration, additives and preservatives, heavy metals, plastic and microplastic packaging materials, color and unknown contaminants.

    Here is an example of food dye analysis. You can use the ultra-fast scan mode to shorten the time needed for routine spectral checks. The 350 nm to 900 nm region can be measured at 1 nm intervals in approximately four seconds.

    Beer Analyzer is optional software for the UV-1900i Plus that allows for brewers to easily analyze the color, polyphenols, alcohol content and bitterness. Based on ASBC Standard Methods.

Return to Top ^

Chemistry analysis of materials

  • High-throughput for analyzing the chemistry of diverse materials samples

    The UV-1900i Plus UV-Vis spectrophotometer is a fundamental instrument used in chemistry for analyzing the absorption and transmission of light by chemical substances. It is widely used in quantitative analysis to determine the concentration of a substance in a solution, qualitative analysis to identify unknown compounds or determine the presence of specific functional groups, reaction monitoring and the characterization of chemical substances and reactions.

    Here is an example of colored cellophane tape analysis. You can quantitatively confirm materials using LabSolutions UV-Vis and color measurement software.

  • Chemistry analysis of materials with uv-vis
Return to Top ^

Featured Content

Return to Top ^

Citations

Videos

  • UV-1900i Plus UV-VIS Spectrophotometer

    • Molecular Spectroscopy

    *The operating procedures are the same for UV-1900i Plus.

  • UV-1900i Plus Photometric Mode

    • Molecular Spectroscopy

    *The operating procedures are the same for UV-1900i Plus.

  • UV-1900i Plus UV-VIS Spectrophotometer

    • Molecular Spectroscopy

    *The operating procedures are the same for UV-1900i Plus.
