Testing, Analysis and Inspection of Batteries and Fuel Cells

Testing, Analysis and Inspection of Batteries and Fuel Cells

Advances in fuel cell and battery technology are enabling the proliferation of electric vehicles. Shimadzu manufactures a complete range of instrumentation to characterize the composition and thermal/mechanical behavior of battery cell membrane, electrolytes and electrodes.

Shimadzu SMX-225CT scanners enable precise nondestructive imaging of internal battery components.

Shimadzu subsidiary Kratos Analytical offers X-ray Photoelectron Spectroscopy instruments for advanced surface and electrochemical investigations.

Multilateral Evaluation of Positive and Negative Electrodes in Lithium-ion Batteries

Multilateral Evaluation of Positive and Negative Electrodes in Lithium-ion Batteries

Demand for lithium ion batteries is expected to expand further in the future, driven by demand for electric vehicles, which are supported by policies in various countries around the world, and demand for PC, smartphone, and tablet devices, which are driven by digital transformation (DX). In addition, companies and research institutes around the world are actively engaged in research and development to commercialize all solid state batteries as next generation batteries. Shimadzu provides total solutions to various market issues by utilizing evaluation equipment and technology cultivated over a long history.

download_btn

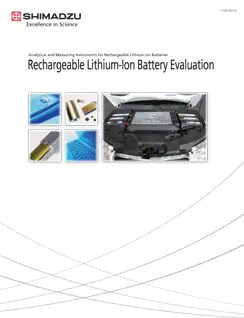

Analytical and Measuring Instruments for Rechargeable Lithium Ion Batteries


The lithium-ion rechargeable battery is a relatively new type of battery that was first used in the early 1990s. With their high voltage and high energy density, these batteries are widely used for consumer electronics applications, such as mobile phones and laptop computers. Due to enhanced consumer concerns for the environment and fuel savings, the automobile industry has also been developing these batteries for hybrid vehicle (HV) and electric vehicle (EV) applications, which should lead to enhanced output, efficiency, and performance. As a leading manufacturer of a broad range of analytical and testing instruments, Shimadzu provides a variety of solutions that contribute to research, development, and quality control of lithium-ion rechargeable batteries as they become more widely used in consumer electronics and eco-cars.

download_btn

Rechargeable Lithium-Ion Battery Evaluation - Application Notebook


Lithium-ion batteries are used widely in household electrical appliances such as cell phones and laptop computers. A considerable increase in demand for lithium-ion batteries is predicted in the transportation sector, where they will be used in aeroplanes, hybrid vehicles, and electric vehicles. These applications will require an increase in the power density, efficiency, lifespan, and stability of these batteries. Lithium-ion batteries are composed of a number of parts, including a cathode, anode, electrolyte, and separator. Increasing the performance of lithium-ion batteries will require detailed investigation and analysis of the properties of each of these components, and of the battery as a whole, by instrument analysis.

download_btn



Lithium-ion Rechargeable Battery Testing Instrument Matrix

Part Material Commonly Used Components Test Items (Instrument)
Positive Electrode Active Material LiCoO2 (lithium cobalt oxide)
Mn or Ni may be used instead of Co.
Composition (ICPES,ICPMS,XRF)
Crystallinity (XRD)
Particle Size (Particle Size Analysis)
Electron State (XPS)
Binder Vinylidene fluoride (polyvinilidene fluoride (PVDF)) Molecular weight distribution (GPC), Composition (FTIR)
Conduction enhancer Carbon (carbon black, acetylene black, graphite, etc) Crystallinity (XRD)
Negative Electrode Active Material Carbon, graphite Crystallinity (XRD), Particle Size (particle size analysis)
Trace Additive Li, P, Cu, Na, Co, Ca, K, etc Composition (ICP)
Binder SBR
CMC(carboxymethylcellulose), PVDF also used previously
Structure (FTIR)
Separator Polyolefins (high-density polyethylene) Structure (FTIR)
Thermal characteristics (TGA)
Electrolyte Solutions Solvent Carbonate ester, carboxylate ester, ether Composition (GCMS,GC)
Electrolyte LiPF6, LiBF4 Composition (ICP)
Additive Vinylene Carbonate Composition (GCMS)
Cells
Single-cell, module
    Compression strength(Universal testing machine)

Featured Applications

Compression Test for Structural Materials of Lithium-Ion Batteries by MCT


The separators keep the positive and negative electrodes separated. They consist of a porous material that provides a path (pores) for ions and the electrolyte. Images of three kinds of separators taken by a scanning probe microscope (SPM) permit visual evaluation of the sample surface irregularities.



Observation of Automotive Computer Using inspeXio SMX-225CT FPD HR X-Ray CT System


Cars equipped with these electronic devices vibrate constantly while in operation, and are also affected by temperature changes due to the atmospheric temperature and heat from the engine and road. Normal operation is necessary even in this severe environment. Since reliability requirements are high, ECUs and other electronic devices are almost always enclosed in cases, but this means it is not possible to inspect the devices themselves from their external appearance. Thus, nondestructive inspection by Xray techniques is required. This article introduces an example of observation of an ECU by using an X-ray CT system.



Internal Observations of Electrodes and Separators (X-ray CT)


X-ray fluoroscopy systems offer non-destructive observations of the internal structures of objects. They are effective instruments for identifying the cause of failure of industrial products. By simplifying the non-destructive tomographic imaging and 3D imaging of the interior of objects, observations of internal shapes, dimensional measurements, and density observations, these systems are powerful tools for defect analysis and quality control.



Simultaneous Analysis of Evolved Gas Produced by the Degradation of a Lithium-Ion Battery (GC)


In evaluating the degradation of lithium-ion rechargeable batteries, it is necessary to analyze the gases produced inside the battery. The composition of the sampled internal gases can be investigated by conveying them to a gas chromatograph. The Shimadzu Tracera High-Sensitivity Gas Chromatograph uses a revolutionary plasma technology to detect all compounds except He and Ne. The system is capable of the simultaneous analysis of C1 to C3 hydrocarbons and inorganic gases including hydrogen, so it eliminates the conventional need for carrier gas switching or combined use of multiple systems. In addition, the Tracera's high sensitivity makes it possible to analyze small quantity gas samples.



Effective Evaluation of the Thermal Stability of Lithium-Ion Battery Materials (DSC)


Lithium-ion batteries may overheat due to overcharging and, in the worst case, catch fire. To investigate their safety, the battery materials must be evaluated for thermal stability. Differential scanning calorimetry (DSC) is effective for these measurements. As battery materials readily react with moisture and oxygen, DSC measurements are performed on materials after they have been sealed in a stainless-steel pressure-resistant cell inside the glove box. This page introduces a system that uses accessories such as an extremely compact hydraulic press that can be easily operated in the glove box and presents some measurements made using the system.



Melting Measurements on Separator (DSC)


Lithium ion battery separators are interposed between the positive and negative electrode sheets to prevent shorting due to contact between the positive and negative active materials, and to ensure electrical conductivity by retaining the electrolyte and allowing ions to pass through. The DSC-60 Differential Scanning Calorimeter is effective for the evaluation of separator melting, electrolyte deterioration or decomposition, and other thermal properties under heating.



Measurement of Separator Contraction Behavior (TMA)


The TMA-60 Thermomechanical Analyzer is an effective tool for evaluation of the expansion and contraction behaviors of separators and other battery materials under heating. The contraction behavior was measured for two types of separators (1 and 2) extracted from lithium ion batteries.



Observations of Separator Pores


The separators keep the positive and negative electrodes separated. They consist of a porous material that provides a path (pores) for ions and the electrolyte. Images of three kinds of separators taken by a scanning probe microscope (SPM) permit visual evaluation of the sample surface irregularities.



Evaluation of Temperature Dependent Strength Properties of Lithium Ion Battery


The separators keep the positive and negative electrodes separated. They consist of a porous material that provides a path (pores) for ions and the electrolyte. Images of three kinds of separators taken by a scanning probe microscope (SPM) permit visual evaluation of the sample surface irregularities.

Journals & Papers

Experimental study on the formability of aluminum pouch for lithium polymer battery by manufacturing processes

Yu, M., Song, M., Kim, M. et al. J Mech Sci Technol (2019) 33: 4353. https://doi.org/10.1007/s12206-019-0831-y
