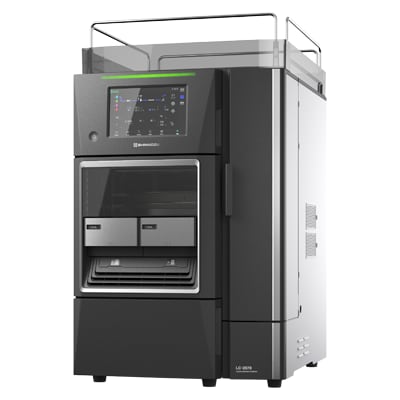

i-Series Integrated HPLC and UHPLC Systems
Request More Information

Compact, robust series of high-performance liquid chromatography (HPLC) systems

The i-Series HPLC and UHPLC systems are built using sustainable materials for fast and accurate sample analysis

As the global demand for both efficiency and sustainability transforms analytical operations, Shimadzu’s innovative “smart” and “eco-friendly” solutions help users reduce their environmental impact while boosting productivity. The need for a more flexible work style – driven by increased automation, while attaining consistent, high-quality results for all users – continues to grow among chromatographers. Shimadzu answers the call with the i-Series line of integrated HPLC/UHPLC systems. The i-Series HPLC/UHPLC redefines integrated LC technology by adding innovative, intelligent and intuitive features to industry-leading performance. The system delivers outstanding data quality, improved workflow efficiency, and maximum uptime. Finally, an LC as smart and flexible as you!

Key Features

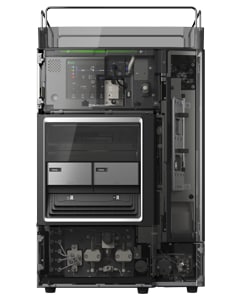

Key features of the i-Series Integrated HPLC and UHPLC Systems
  • Auto-diagnosis of pump performance and auto-recovery to reduce downtime
  • Autosampler clogging detection
  • Smart Flow Control to protect columns from damage
  • Auto-shutdown feature and ecology mode to save energy
  • Auto-validation feature for easy operation
  • Touch screen QR Codes to access web-based instructional videos right on your smart device
  • Large sample capacity and detector flexibility
  • LabSolutions and multi-vendor software compatibility
  • New column management platform (iCMP) without restrictions on columns or instrument
  • Manufactured using recycled materials to meet ISO14001 requirements

Quick Specs

 Parameter LC-2070C LC-2080C

Maximum Operating Pressure		 50 MPa (7,251 psi) 70 MPa (10,152 psi)

Solvent Delivery		 Quaternary pump, up to 10 mL/min

Injection		 Total-volume sample injection with needle-in-flow path design, give volumes (0.1 to 2000 ul)

Sample Capacity		 4 plates (336 samples with 1 mL vials, 216 with 1.5 mL vials, 112 samples with 4 mL vials)

Detectors		 Built-in UV or PDA, optional detectors: fluorescence, refractive index, ELSD, single quad MS

Column Capacity		 3 columns (maximum length of 300 mm), or 6 columns (maximum length of 100 mm)

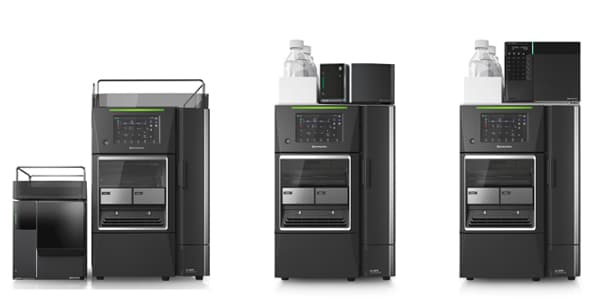

Sustainable design, reduced energy consumption, small footprint

  • Eco-friendly HPLC/UHPLC systems with several models available to meet your lab needs

    i-Series are eco-friendly models built with product sustainability in mind – featuring reduced environmental impact through use of recycled materials during manufacturing, reduced packaging for transportation, and lower energy consumption during daily operations. Multiple configurations and accessories are available to suit your analysis methods. With the compact design and built-in UV or PDA detector, you can position additional detectors such as ELSD, fluorescence, or refractive index detectors vertically, rather than horizontally, expanding detection capabilities without increasing its footprint. The sleek design features LCD touch screen, a large capacity, open access autosampler, and a slim column oven with expanded temperature range and ability to fit up to six columns.

  • Sustainable design, reduced energy consumption, small footprint HPLC system
Return to Top ^

Analytical Intelligence features and remote operation

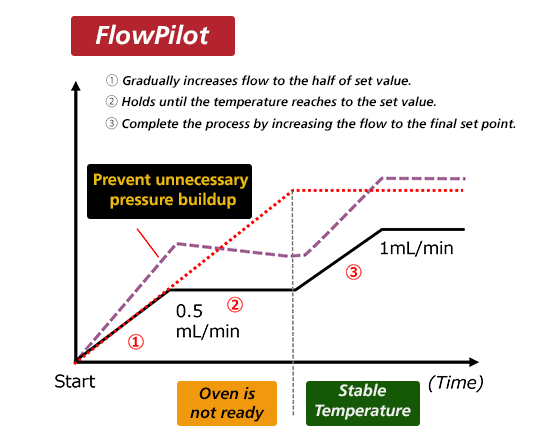

  • FlowPilot feature increases the flow rate gradually as the column oven warms up to protect columns from damage, saving money on lab consumables

  • Streamline sample analysis with automated functions from instrument startup to analysis completion

    The Analytical Intelligence features of i-Series systems enable higher productivity and maximum reliability by seamlessly integrating diagnosis, recovery, and prevention capabilities in one platform. Auto diagnosis of pump performance and detection of injector clogging prevent sample loss and enhance efficiency. FlowPilot feature increases the flow rate gradually as the column oven warms up to protect columns from damage, saving money on lab consumables. i-Series autosamplers include easy-to-use automatic pretreatment functions, such as co-injection, auto-dilution, and reagent addition that reduce lab workload. And finally, automated start-up and shutdown enable reduced energy consumption and less labor while maintaining high throughput.

Return to Top ^

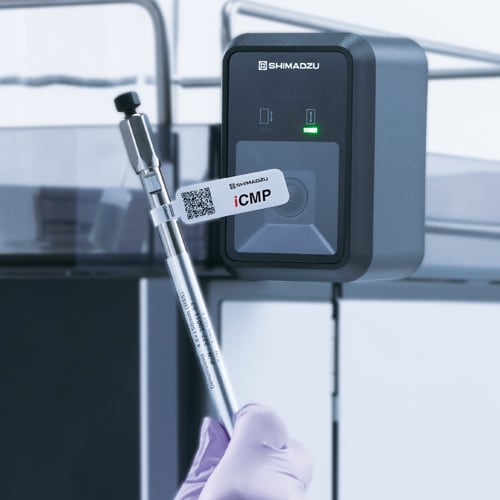

Intelligent Column Management Platform (iCMP)

  • Seamlessly Connects Columns and Analysis Data

    Correctly managing the usage logs for columns is indispensable for improving the reliability of data. By combining Column Manager (a database), a special scanner, and 2D code labels (iCMP tags), the intelligent Column Management Platform (iCMP) automatically links information on used columns and analysis reports automatically. As a result, which columns were used, when, and by whom are clearly registered, thereby improving both usability and data reliability.

  • Intelligent Column Management Platform
Return to Top ^

Featured Content

Return to Top ^

Latest Webinar

Learn more

Videos

  • i-Series High Performance Liquid Chromatograph

    • Liquid Chromatography

    The new, integrated i-Series LC system keeps the excellent performance of its predecessor but also addresses the demands of an increasingly varied range of users, locations, and approaches to analysis while always delivering highly reliable analytical results.

  • i Series - A more flexible work day

    • HPLC/UHPLC/SFC Systems

  • How to: Prime and Purge an i-Series HPLC Pump

    Many of the most common questions about operating a Shimadzu i-series HPLC system can be addressed by using the Autopurge function prior to making the first injection of the day. This video shows how to prepare the HPLC system for purging all mobile phase lines as well as the autosampler line. When these steps are followed and the Autopurge function is finished, a constant flow and pressure can be achieved, which makes the chromatogram collected reproducible every day!

  • Analytical Intelligence Features in HPLC/UHPLC Save Time and Improve Productivity

    • Liquid Chromatography

    Watch this video to learn about a range of analytical intelligence functions incorporated in the modular Nexera 40 series and integrated i-Series (U)HPLC systems. You'll learn about automated startup/shutdown, auto diagnostics, smart flow control, and real-time mobile phase monitoring, all designed to save time and money and improve workflow efficiency.
